Product Details:
|
Product Name: | Gear Box Unistrict Channel Solar Rack Roll Forming Machine 22kw Power C Shape | Material Thickness: | 1-3mm |
---|---|---|---|
Machine Power: | 30kw+7.5kw | Driven System: | Chain Or Gear Box |
Control System: | PLC | Warranty: | 2 Years |
Life Time: | More Than 10 Years | ||
High Light: | cable tray production line,steel profile roll forming machine |
Gear Box Unistrict Channel Roll Forming Machine Solar Rack 22kw Power C Shape
Working flow
Decoiler-----feeding----- leveling------ punching ------roll forming -----cutting----output table
Machine Component
Hydraulic De-coiler-----------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching machine-------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Hydraulic punching device---------------------1set
Production support table-----------------------1set
Decoiler
Inner Diameter: Φ500 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 5000 kg
Type: hydraulic
Power:7.5kw
Control system: PLC

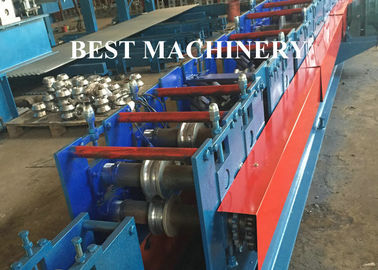

roll forming machine
Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 1-2mm
Rollers: 22Groups
Material for Rollers: GCr15 steel after treatment
Hardness for Heat Treatment: HRC55 – 60
Frame panel thickness: 20mm
Bottom frame: 40# H-section steel
Motor Power:11 kw x2
Driven type: double sides double row 1.5"Chain
Punching device
Item | Parameter detail |
Frame processing | the whole levelling surface is made by drilling machine |
Mould material | Cr12mov |
Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
Hole size | According to your request |
Hole number | According to your request |
Pressure | 20Mpa |

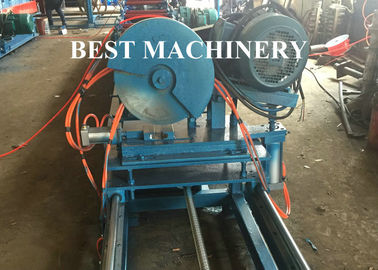

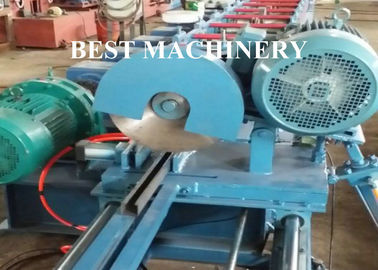

Cutting device
Type |
Pre-cutting |
Blade material | Cr12mov quenching and grinding |
Frame processing |
the whole bottom frame is grinding for high-precision |
Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
Working | Hydraulic type |
PLC
Type: PLC Frequency Control System with double touch screen
PLC Brand: FATEK
Encoder Brand: Omron
Length Error: ±2mm
Language: Chinese and English
Voltage:380v 50hz 3phases(as customer requirement)
Hydraulic pump
Main Item | Parameter detail |
Motor |
3kw China brand or according to your request |
Pump | China brand or according to your request |
Solenoid valve | China brand or according to your request |
Cooling system |
Cooling fan |
Re-sale Service :
1. Send you invitation letter, if you wanna visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by whatsapp or Telephone.
Machine Photos
Contact Person: Mr. Arno Hao
Tel: +8618717894416
