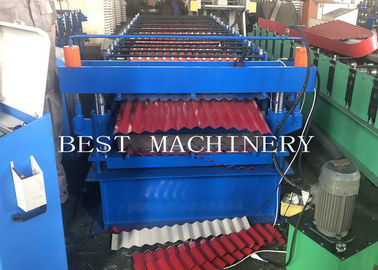

PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines

PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines
PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines
PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines

Large Image :  PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY18-76-988
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines

Description
Product Name: PPGI Steel Double Layer Corrugated Roof Sheet Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 8-12m/min Machine Power: 3kw+3kw
Warranty: 2 Years Life Time: More Than 10 Years
Tile Type: Colored Steel Place Of Origin: Hebei, China
Roll Material: 45# High Grade Steel Usage: Roof Building
High Light:

metal roofing equipment

,

roofing sheet making machine

PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines



Working flow
Decoiler---Feeding--Froming-- Cut to legth--Output table


Machine components


De-coiler------------------------------------------2sets

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set


Decoiler

(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ508 – Φ610 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs


roll forming


Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 13-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm



Cutting

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw

PLC


(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese


Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request

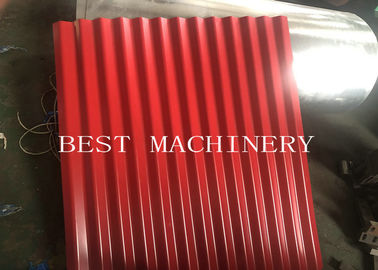

PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines 0

Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

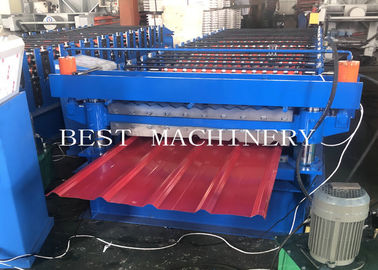

PPGI Steel Two Layer Corrugated Roof Sheeting Machine , Roof Sheet Rolling Machines 1




FAQ

1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4) Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
