Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard

Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard
Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard

Large Image :  Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY 60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard

Description
Product Name: Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard Life Time: 10years
Warranty: 2years Machine Power: 5.5kw+3kw
Driven System: Chain Or Gear Box Control System: PLC
High Light:

metal roll forming machine

,

profile roll forming machine



Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard



Working flow


Decoiler---------leveling--------punching---------roll forming--------cut to length----------output table



Machine components:



De-coiler-------------------------------------------1set

Punching device---------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set


Techincal description:



Material specification Galvanized and pre-painted galvanized steel.
Thickness 0.5mm to 1.5mm
Main motor power 5.5 kw.
Hydraulic station power 3 kw.
Feeding width 124mm.
Cover width 60mm.
Yield stress 235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed 12 m/minute.
Cutting Tolerance ±2mm
Manual Uncoiler Max. Capacity: 5000kgs.
Voltage As per customer’s request.
Numbers of stands 11 stands/stations/pairs.
Roller material 5# steel polished and coated with chrome HRC55-60°
Shaft diameter 60mm
Shaft diameter high grade No.45 steel after treatment
Type of cutting Roll-formed and length-set profile cutting.



Control system



PLC PLC Frequency Control System with touch screen
PLC Brand Delta
Encoder Brand Omron
Length error ±2mm
Transducer Panasonic



RFQ



1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2) Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. ALIBAB’s Gold supplier with BV assessment and CE certificate.



4) Q: What can you do if the machine broken?

A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q: Can you be responsible for transport?

A: Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q: Can you supply the raw materials?

A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.



Contact Information:

Abby Song

WhatsApp/Wechat is 0086-18701854523

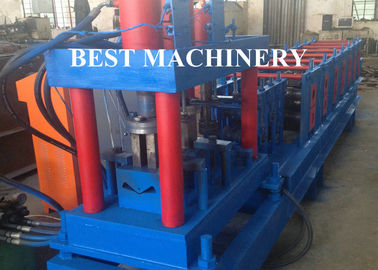

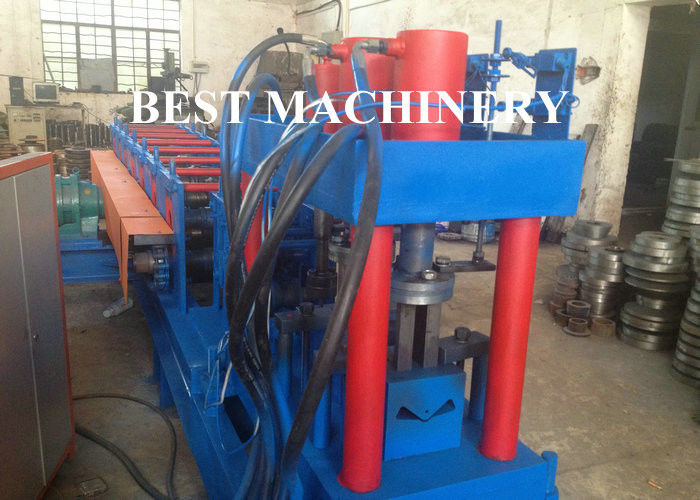

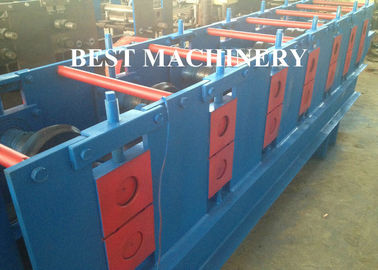

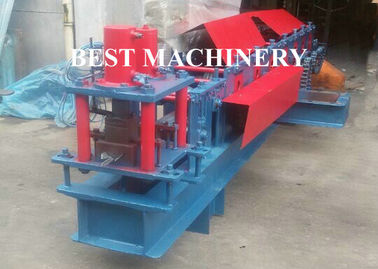

Machine Photo



Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard 0



Metal Building Palisade Fence Panel Post Roll Forming Machine Protective Guard 1
