Description
Product Name: 2 & 3 Beam Exprpessway Rail Guard Roll Forming Machine 3mm - 5mm Galavnized Cutting Type: Hydraulic
Punching Type: Hydraulic Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

highway guardrail forming machine

,

guardrail roll forming machine

 2 / 3 Beam Exprpessway Rail Guardrail Forming Machine 3mm - 5mm Galavnized


Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component



De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se


Technial Specification



No   Technical Specification
1 Manual Uncoiler Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:1.2T,Inner diameter: 500-508mm
2 Feeding Table Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3 Main Roll Forming Machine Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4

Hydraulic System

Computer Control Cabinet

Power:5.5kw,Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC:EURA

5 Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

6

Output Table



It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.



Technical Parameters



1. Decoiler: umbrella type, passivity decoil, manual expansion

2. Decoiler capacity: 5T

3. Material width and thickness: 480mm*(2.0-3.2mm), Q235A steel

4. Working speed: 15M/min

5. Forming stand: 15 station and 7 leveling rollers

6. Roller material:GCr15 bearing steel with quenching treatment, HRC58-62

7. Main shaft material: high grade No.45 steel by thermal refining

8. Main shaft diameter: φ95mm

9. Main motor power: 22kW

10. Transmission: Chain

11. Leveling motor power: 5.5kW

12. Hydraulic motor power: 11kW with accumulator

13. Punching and cutting type: hydraulic transmission, pre-punching, cutting after forming

14. Punching and cutting mould: Cr12 with quenching treatment, HRC58-60

15. Outside size of machine: 16000x2700x1700

16. Hydraulic station pressure: 10~12 Mpa

17. Control system: the production line adopts industry computer PLC frequency converting controller, the length tolerance ≤2m

18. transducer: Mitsubishi

19. PLC: Mitsubishi FX-IS series


Processing Flow

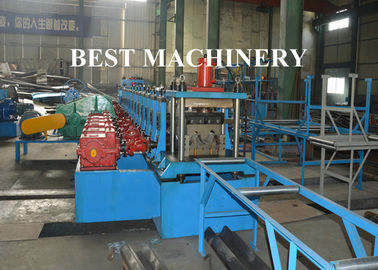

2 / 3 Beam Exprpessway Rail Guardrail Forming Machine 3mm - 5mm Galavnized 0

Machine Photos

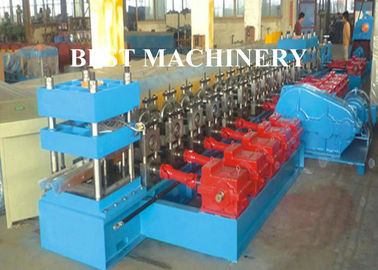

 2 / 3 Beam Exprpessway Rail Guardrail Forming Machine 3mm - 5mm Galavnized 1

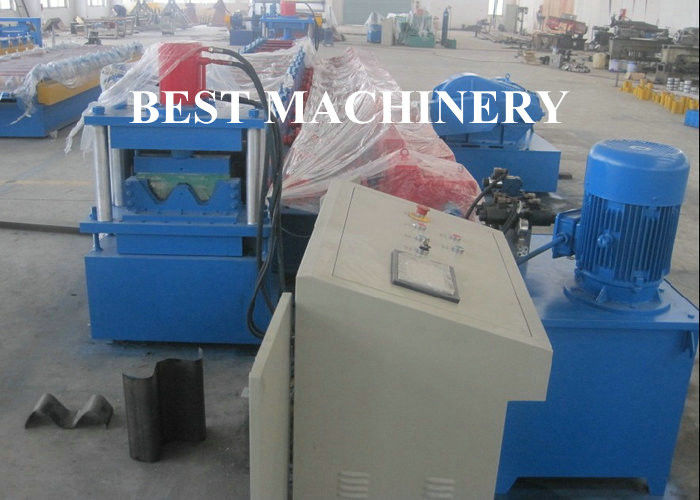

2 / 3 Beam Exprpessway Rail Guardrail Forming Machine 3mm - 5mm Galavnized 2

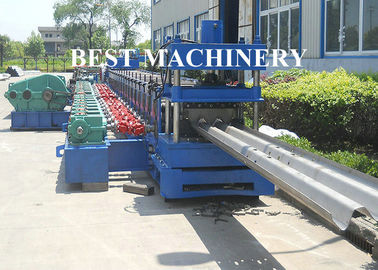

2 / 3 Beam Exprpessway Rail Guardrail Forming Machine 3mm - 5mm Galavnized 3
