Product Details:
|
Product Name: | Roof Tile Crest Ridge Cap Roll Forming Machine CE / SGS Certificated | Color: | Blue Or As Your Request |
---|---|---|---|
Machine Speed: | 8-12m/min | Machine Dimention: | 5.5mx1mx1.4m |
Machine Power: | 3kw+3kw | Control System: | PLC |
Cutting Type: | Hydraulic | ||
High Light: | ridge cap machine,steel roof tile forming machine |

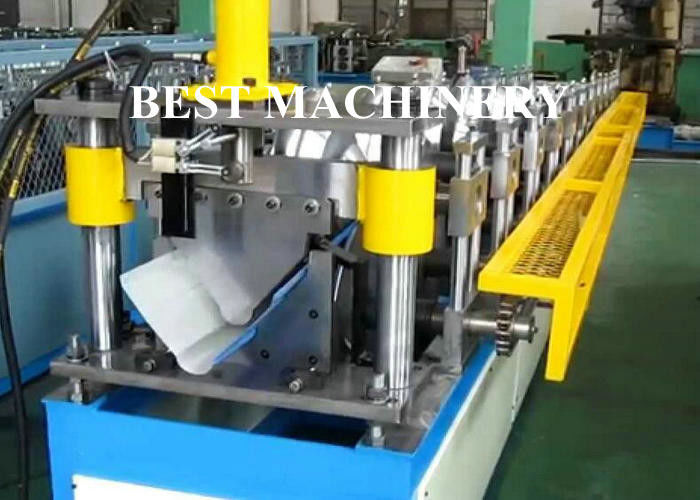

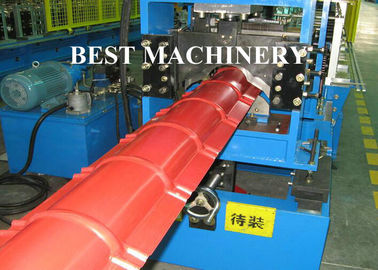

Roof Tile Crest Ridge Cap Roll Forming Machine CE / SGS Certificated
Main Features
1) All the rollers and shafts are solid.They are made of high quality No.45 Steel.
2) We have experienced engineers with more than 10 years to offer the most popular solutions.
3) installation engineers can go to your site if needed
4)12 months maintenance and whole life technical support.
5 )We cooperate with ,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.
Working flow
Machine components
No. | Name | Qty |
1. | De-coiler | 1 Set |
2. | Roll Forming Machine | 1 Set |
3. | Hydraulic Pressing and Cutting Device | 1 Set |
4. | PLC Control Box | 1 Set |
5. | Hydraulic Pump | 1 Set |
6. | Output table | 1 Set |
Machine Parts
Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated
Name:PLC
Brand: Mitsubishi Japan
Mitsubishi PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
Name: Hydraulic Station
Adopts separated hydraulic station, one for decoiler, one for cutting device.
Supplies the initial power to the cuter through a closed oil tank. The decoiler hydraulic motor will switch off normal to save the power.

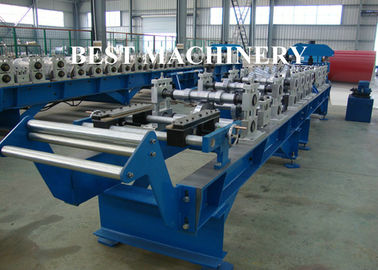

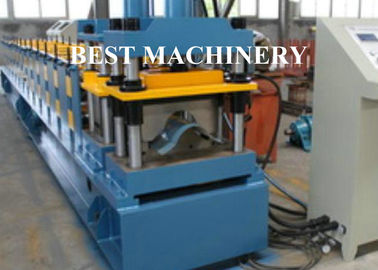

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 14 groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw
(9) Driven type: 0.6"Chain
(10)S peed: about 6m/min
1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you operation manual book and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and
other necessary things.
2. After Sale Service
a. One year guarantee for whole machine.
b. 24 hours technical support by email or calling
c. If there is any problem found of the machine, we will repair it for free in one year.
