Product Details:
|
| Product Name: | Gavalnized Steel U Channel Guide Frame Making Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Highlight: | metal roll forming machine,cold roll forming machine |
||
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 300mm | 500mm |
| Capacity | From 3-5tons | From 5-15 tons |
| Inner diameter | φ450-550mm | φ450-550mm |
| Outer diameter | φ1500mm | φ1800mm |

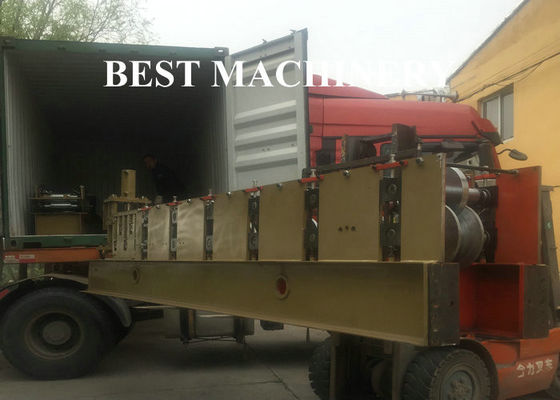

roll forming
| Item | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.25-0.8mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 10-22 stations(according to the profiles) | ||||||||
| Machine rollers |
high grade No.45 forged steel,plated hard chroming with thickness 0.05mm |
||||||||
| Machine Shaft | φ60-70mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||
| Driving system | 1 inch chain or gear box(option) | ||||||||
| Machine power | 3kw-5.5kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutting
| Type |
Mould cutting type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
