Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail

Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail
Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail

Large Image :  Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 50-60 days
Supply Ability: 10sets/month

Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail

Description
Product Name: Galvanized 5mm Thick U Post Roll Forming Machine For Highway Guardrail Cutting Type: Hydraulic
Punching Type: Hydraulic Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

highway guardrail forming machine

,

guardrail roll forming machine



Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail




Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table




Machine Component



De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se



Parameter



1. DECOILER

(1)Max. capacity: 5t
(2)Inner Diameter: Φ450 – Φ550 mm
(3)Out Diameter: 1500 mm


2. LEVELING DEVICE
(1)Rollers for Leveling: 5 rollers
(2)Material for Rollers: 45# steel polished and coated with chrome HRC55-60°

(3)Hardness for Heat Treatment: HRC55 – 60°



3. ROLL FORMING MACHINE

(1) Material Thickness: 5 mm
(2) Rollers: 13Groups
(3) Material for Rollers: Gcr15# steel polished and coated with chrome HRC55-60°

(4) Material for shaft: high grade No.45 steel after treatment

(5) Diameter of shaft: 100mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 15 kw x2
(9) Rolling Speed: 8-12 m / min

(10) Transmission type: gear box


4. CUT-OFF DEVICE

(1) Material for Cut-Off Modular: Cr12 steel after treatment
(2) Hardness for Heat Treatment: HRC55 – 60
(3) Motor for Hydraulic Stand: 11 kw



6. ELECTRONIC CONTROL SYSTEM: PLC 1 SET
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron

(4) Length Error: ±1mm

(5) Language: English and Chinese

(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

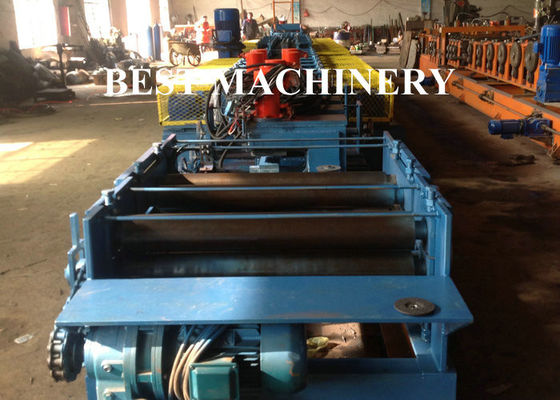

Machine Photos






Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail 0



Galvanized 5mm Thick U Channel Roll Forming Machine for Highway Guardrail 1





Installation and training:



1 If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2 Without visiting,we will send you user manual and CD to teach you to install and operate.
3 If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



RFQ



Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.
