Product Details:
|
| Product Name: | 1mm - 3mm Steel Slitting And Cutting Length Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Driven System: | Chain Or Gear Box | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | cold roll forming machine,profile roll forming machine |
||
Custom Roll Forming Machine 1mm - 3mm Steel Slitting and Cutting Length
Machine components
| Name | NO. | Unit |
| 1. De-coiler | 1 | set |
| 2. Slitting and cutting machine | 1 | set |
| 3. PLC control box | 1 | set |
| 4. Hydraulic pump station | 1 | set |
| 5. Production support table | 1 | set |
Machine capacity:
Thickness of coiled plate:0.3-3.0mm
Width of coiled of plate: 1000mm
Precision of slitting: width tolerance about 0.5mm
Length tolerance about 2mm
Machine detail:
DECOILER
(1) Inner Diameter: Φ508 – Φ610 mm
(2) Out Diameter: 1500 mm
(3) Max. Loading Capacity: 5000 kg
(5) Type: manual
Flatting and slitting
(1) Number of blades: 4blades
(2) Main power: 5.5kw
(3) Speed: about 10m/min
(4) Diameter of axis: 80mm
(5) Material of slitting blade: CR12
(5) Hardness of blades: HRC55-60℃
(6) The blade size: 220mm*15mm
(7) Voltage: 380V/3PH/50HZ
(8) Control system: PLC
Cutting device
(1) Cutting: hydraulic type
(2) Material for Cut-Off Modular: Cr12 steel after treatment
(3) Power: 3kw
HYDRAULIC PUMP STATION
(1) Motor power:3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand

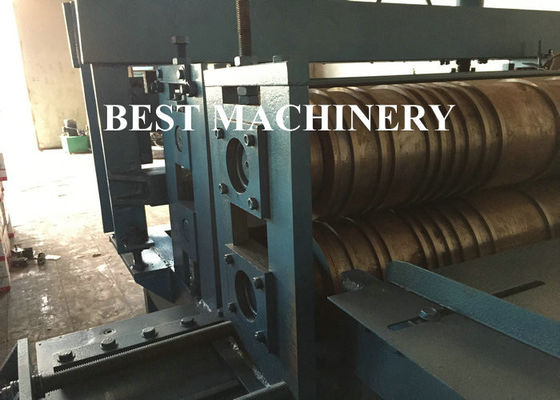

Machine Photo
After-sales service
Technical Support
Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.
Spare Parts
Promptly providing spare parts and wearing parts.
Upgrade
Improve technology and upgrade of equipments.
sandwich panel production line good price
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30 days after receiving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
RFQ
A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 80$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
A: 1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.
