|Product Name:||High Strength Galvanized Metal Anode Plate Board Roll Forming Machine Line||Color:||Blue Or As Your Request|
|Driven System:||Chain Or Gear Box||Cutting Type:||Hydraulic|
|Warranty:||2 Years||Life Time:||More Than 10 Years|
cold roll forming machine,
profile roll forming machine

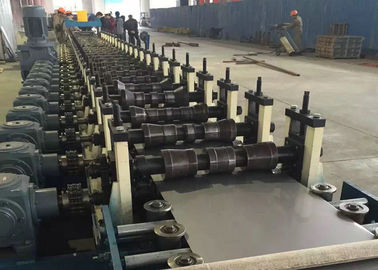

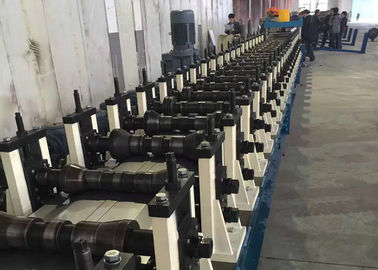

|2.||Roll Forming Machine||1 Set|

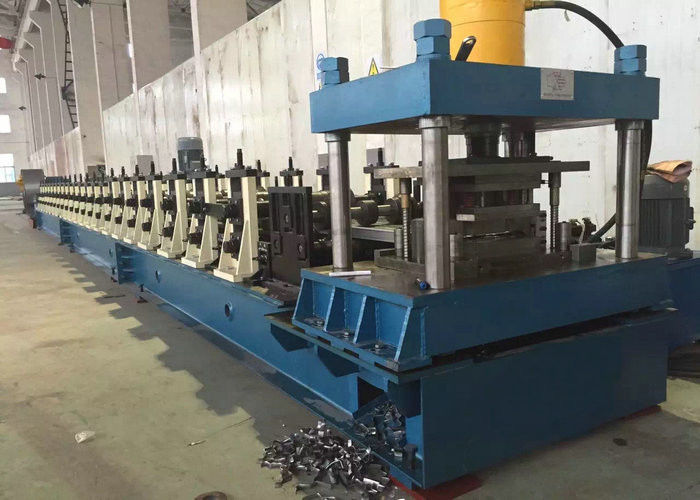

|3.||Hydraulic Cutting Device||1 Set|
|4.||PLC Control Box||1 Set|
|5.||Hydraulic Pump||1 Set|
|6.||Output table||1 Set|
|Type||Manual type(standard)||Hydraulic type(option)|
|Capacity||Max 5tons||From 5-15 tons|
(1) Material Thickness: 1-2 mm
(2) Rollers: 22Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°
(4) Material for shaft: #45 steel after treatment
(5) Diameter of shaft: 80mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 22kw
(9) Rolling Speed: 8-10 m / min
(10) Driven type: 2＂Chain
bearing sliding type
|Blade material||Cr12mov quenching and grinding|
the whole bottom frame is grinding for high-precision
|Blade processing||wire-electrode cutting, but the upper balde can not be straight. this is technology|
|Length||1.5m-2m||6m or 12m|
|Main item||Parameter detail|
Delta(standard) or according to your request
|Inverter||China brand(standard) or according to your request|
|Touch screen||Mcgs(standard) or according to your request|
|Encoder||China brand(standard) or according to your request|
|Main Item||Parameter detail|
3kw China brand or according to your request
|Pump||China brand or according to your request|
|Solenoid valve||China brand or according to your request|
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
