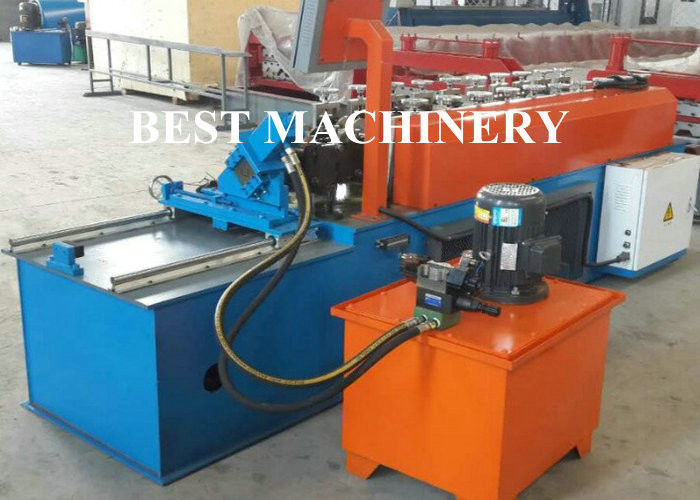

Product Details:
|
| Product Name: | High Speed Main Channel U Profile Roll Forming Machine Villa House Frame | Color: | Blue Or According To Your Requirement |
|---|---|---|---|
| Control System: | PLC | Cutting Type: | Non-stop Cutting |
| Warranty: | 2 Years | Lifetime: | 10years |
| High Light: | steel stud roll forming machine,metal stud roll former |
||
|
Sepcifications for CNC Light Keel Main matel frame stud Channel roll former Forming Machine
|
|||
|
Manual Un-coiler
|
Max Capacity: 5000kgs
|
||
|
Inner diameter of coil:450-550mm
|
|||
|
Manual with brake
|
|||
|
Leveling Device
|
Ensure the material level and straight
|
||
|
The width can be adjusted
|
|||
|

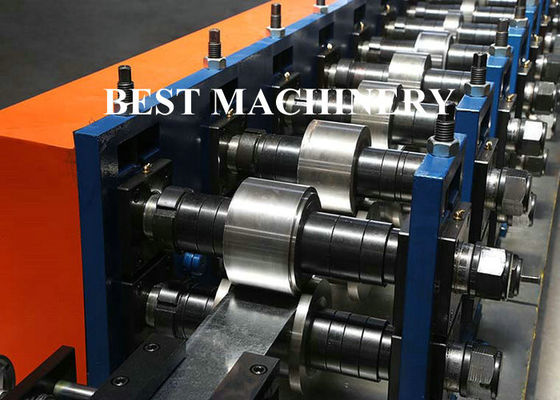

Main Forming System
|
Width & Height & Thickness of sheet: According to Drawings
|
||
|
Material: GI sheet coil or Colored sheet coil
|
|||
|
Motor Power: 5.5 kw forming system
|
|||
|
Roller material:Cr12.
|
|||
|
Surface of Roller: Heat treatment HRC58-60.
|
|||
|
Diameter of main shaft: 60mm #45 steel, heat treat modulation
|
|||
|
Forming station: 12 stations.
|
|||
|
Transmission: by chain and gear
|
|||
|
Measuring accuracy: +/- 0.5 mm/M.
|
|||
|
Safety Hood: Cage
|
|||
|
Arch middle plate: 30mm thickness.
|
|||
|
Output: 8-10 Tons per shift (8 hrs.).
|
|||
|
The machine base is assembled and welded by high quality steel.
|
|||
|
|
Cutting way: Tracking (Flying)..
|
||
|
Oil pump station: 1set
|
|||
|
Motor power of Oil pump station: 7.5kw with cooling system.
|
|||
|
Forced air cooling device available.
|
|||
|
Cutting mould: 1 sets.
|
|||
|
Material of blade: CR12 with heat treatment HRC60-62.
|
|||
|
Electrical System
|
Control system: HMI & PLC control panel.
|
||
|
Power: 440V 50Hz (as per local requirement)
|
|||
|
Run-out Table
|
Frame: 8# steel groove welded
|
||
|
Roller type.
|
|||
|
Quantity: 1 pc
|
|||
RFQ
Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr
ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th
ings.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
