Steel Wall Angle Bar Cold Roll Forming Machine L Shape Bead Perforated

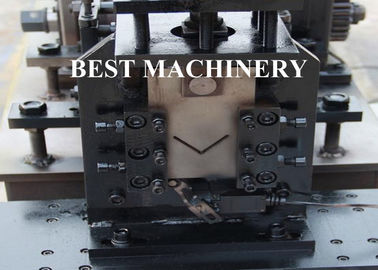

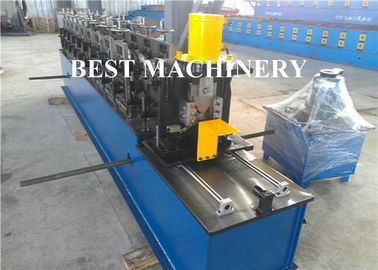

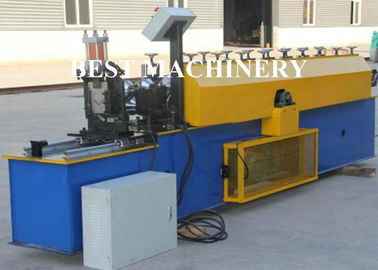

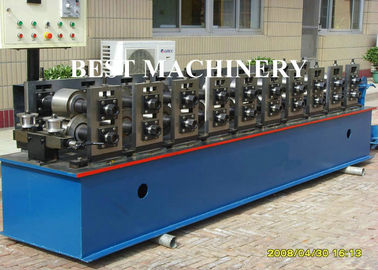

Large Image : Steel Wall Angle Bar Cold Roll Forming Machine L Shape Bead Perforated

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY38x26

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	plastic film for naked machine
Delivery Time:	30-40 days
Supply Ability:	20 sets/month

Contact Now

Steel Wall Angle Bar Cold Roll Forming Machine L Shape Bead Perforated

Description

Product Name:	Steel Wall Angle Bar Cold Roll Forming Machine L Shape Bead Perforated	Punching Type:	Hydraulic
Control System:	PLC	Cutting Type:	Flying Saw
Warranty:	2 Years	Lifetime:	10years
Highlight:	steel stud roll forming machine , profile roll forming machine

Steel Wall Angle Bar Cold Roll Forming Machine

Professional L-shaped bead perforated steel wall angle bar production equipment for efficient cold roll forming operations.

Machine Components

Component	Quantity
De-coiler	1 set
Feeding Guiding Device	1 set
Roll Forming Part	1 set
Hydraulic Cutting Device	1 set
Computer Control Box	1 set
Hydraulic System	1 set
Run-out Table	1 set

Technical Specifications

Processing Material: Galvanized steel strip
Material Thickness: 0.3-0.8mm
Main Motor Power: 5.5kw
Cutting Power: 4kw
Productivity: 15-25m/min
Shaft Diameter: 52mm
Number of Stations: 11 rows of rollers (above and below)
Control System: Taiwan Delta PLC with inverter
Power Supply: 380V, 3 Phase, 50Hz (customizable)
Overall Dimensions: Approximately 3500mm × 1450mm × 1200mm
Weight: Approximately 3.5 tons
Roll Stations: 10 stands
Cutter Standard: GCr12
Roller Material: 45# steel

Packaging & Shipping

One 40ft container accommodates one complete machine set with manual decoiler
Complete anti-rust oil treatment with PLC controller protected by foam film
Spare parts and small components packed in plastic tooling boxes
All components securely fixed with steel wire within container

Installation & Training

On-site factory visits include comprehensive installation training and worker/technician instruction
Remote support includes detailed user manual and instructional CD for installation and operation
On-site technician services available with arrangement of board, lodging, and necessary facilities

Our Comprehensive Service

Pre-Order Consultation:

Market analysis for product popularity and demand forecasting
Technical specification confirmation including drawings, material thickness, steel coil hardness, and input width
Direct manufacturer sourcing assistance for steel coil materials at competitive pricing

Production Process:

Regular progress updates with production schedule photographs
Technical knowledge sharing through dedicated blog resources
Custom machine body color options based on customer preference

After-Sales Support:

Comprehensive one-year machine warranty
Free replacement parts with customer responsible for freight costs
Lifetime technical support for all roll forming machines
Multiple communication channels including WhatsApp, WeChat, and email for timely assistance
