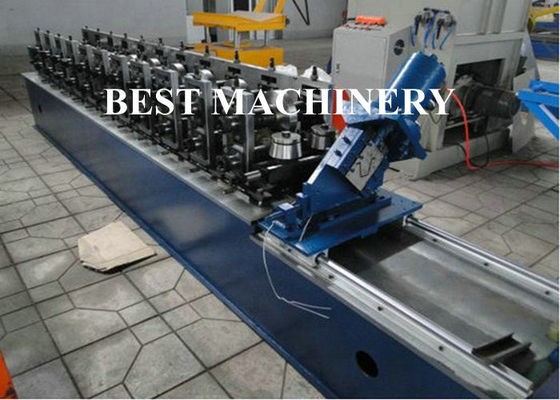

Product Details:
|
| Product Name: | Light Steel Keel Omega Profile Roll Forming Machine Ceiling Wall | Control System: | PLC |
|---|---|---|---|
| Cutting Type: | Flying Saw | Warranty: | 2 Years |
| Lifetime: | 10years | Roller Material: | Cr12 Mov |
| Shaft Material: | 45#steel | ||
| Highlight: | steel stud roll forming machine,profile roll forming machine |
||
Working flow
Decoiler------feeding------roll forming---------punching-------cut to length-----output table
Profile Drawing
Machine Components
| Name | Quantity(set) |
| De-coiler | 1 |
| Feeding guiding Device | 1 |
| Roll Forming Part | 1 |
| Hydraulic cutting Device | 1 |
| Computer control box | 1 |
| Hydraulic System | 1 |
| Run-out table | 1 |
Parameter
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 5.5 kw |
| Pump Power | 3kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 60mm |
| Backboard Thickness | 16mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
| Working conditions | |
| 1.Machine size | 10m x 1.2m (L XW) |
| 2.Working size | 20m x 2.5m (LXW) |
| 3.Power supply | 8.5kw |
| 4.Frequency | 50-60HZ |
| 5.Wires/cables | 4-6mm²(length according to workshop) |
| 6. Labor cost | 2 workers |
| 7. Tools | Spanners and screwdriver |
| 8.Lift device | 3-5t forklift or crane |
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
RFQ
Step 1: Tell us your requirements
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.
