Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine

Description

Product Name:	Automatic Galvanized Steel U Channel Metal Purlin Cold Roll Forming Machine	Driven System:	Chain Or Gear Box
Control System:	PLC	Cutting Type:	Hydraulic
Warranty:	2 Years	Life Time:	More Than 10 Years
Highlight:	channel roll forming machine , c channel roll forming machine

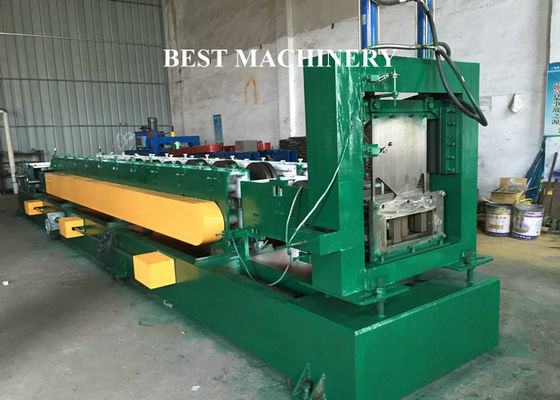

Automatic U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine

Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Punching Device U Channel Roll Forming Machine , Galvanized Steel Roll Forming Machine 0

Machine Component

De-coiler	1 set
Leveling device	1 set
Forming machine	1 set
punching device	1 set
Cutting device	1 set
PLC control box	1 set
Hydraulic pump station	1 set
Production support table	1 se

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	500mm	600mm
Capacity	5000kgs	5000kgs-8000kgs
Inner diameter	450-550mm	450-550mm
Outter dimater	1500mm	1800mm

roll forming machine

Item

Parameter detail

Processing Material

GI and Black Coils

Material thickness

1-3mm(standard), 3-5mm(customized)

Machine frame

360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision

Machine siding panel

Plate type	Casting Pillar type(option)

Plate thickness:20mm	Pillar thickness:35mm

Forming stations

13-18 stations (according to the material thickness)

Machine rollers

high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft

φ80-90mm high garde No.45 steel after treatment,

Machine spacers

CNC lathing in high-precision and wire-electrode cutting

Machine bearings

China Haerbin bearing or SKF international bearing(option)

Driving system

2 inch chain or gear box(option)

Machine power

7.5kw-22kw(according to the size and thickness)

Machine working speed

without punching:8-12m/min or 10-30m/min(option)

Machine testing method

After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Punching device

Item	Parameter detail
Frame processing	the whole levelling surface is made by drilling machine
Mould material	Cr12mov
Mould processing	wire eletrode-cutting for the mould shape, it will save pressure
Hole size	According to your request
Hole number	According to your request
Pressure	20Mpa

Cutting device

(1) Material for Cut-Off Modular:Cr12 steel
(2) Hardness for Heat Treatment:HRC60 – 65
(3) Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Cut-Off Modular:1 set
(5) Motor for Hydraulic Stand: 3 kw

Stacker

Type	Manual	Auto(option)
Length	2pieces, length is adjustable	according to your requirement

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan
