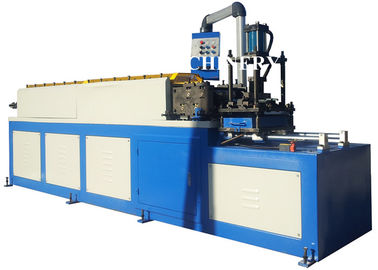

Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct

Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct
Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct

Large Image :  Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY 75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct

Description
Product Name: Fire / Vane Smoke Damper Roll Forming Machine Square / Rectangle Duct Life Time: 10years
Warranty: 2years Driven System: Chain Or Gear Box
Control System: PLC Material: Steel&aluminum
High Light:

metal roll forming machine

,

profile roll forming machine



Fire / Vane Smoke Damper Roll Forming Machine Square / Rectangle Duct



Working flow


Decoiler---------leveling---------puncing-----roll forming--------cut to length----------output table





Machine components:



De-coiler-------------------------------------------1set

Punching device---------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set


Techincal description:



  Items Specifications
Material of coil Material Thickness 1.5 mm galvanized coils
Un Coiler 3 tons manual
Forming system Rolling Speed About 10m/min
Roller Stations About 16 stations
Roller Material

Gcr15 coated with chrome



Shaft diameter 65mm
Maim Motor Power 11kw
Pinching motor 2.2kw
Motor cutting Power 7.5kw
Cutting system Material Of Cutting CR12mov with quench treatment
Hardness HRC58-62
Tolerance of cutting +-1.5mm
Cutting blades 3 sets
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s requirey

Control System PLC (Panasonic) as list in the note
  Weight About 8 tons
  Way Of Drive 1.2 inch chain



PLC



(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese



RFQ



1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2)Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. ALIBAB’s Gold supplier with BV assessment and CE certificate.



4)Q:What can you do if the machine broken?

A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q:Can you be responsible for transport?

A:Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q:Can you supply the raw materials?

A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.



Profile

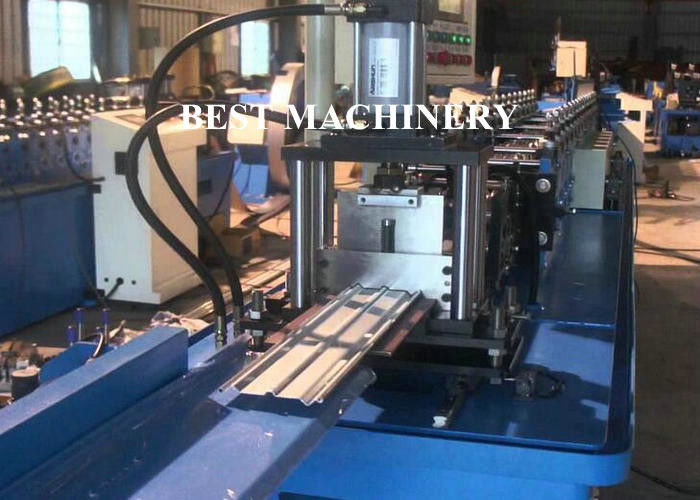

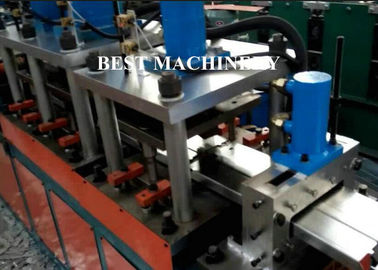

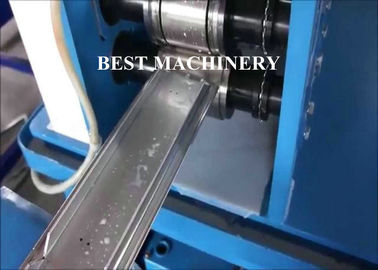

Fire/Vane Smoke Damper Roll Forming Machine Square/Rectangle Duct 0
