Product Details:
|

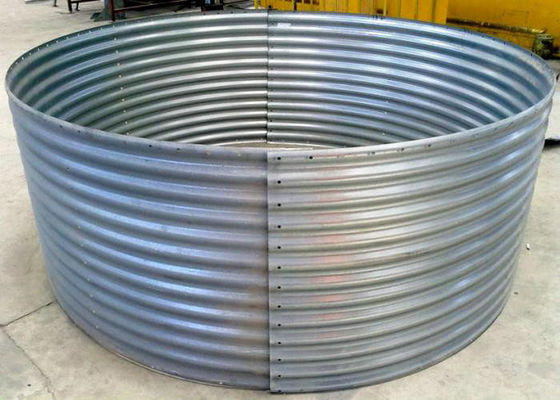

| Product Name: | Galvanized Corrugated Trapezoid Tank And Roof Sheet Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Power: | 3kw+3kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Warranty: | 2 Years |
| Highlight: | metal roll forming machine,profile roll forming machine |
||
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |
roll forming
| Item | Parameter detail | ||||||
| Processing Material | GI and PPGI | ||||||
| Material thickness | 0.25-0.8mm | ||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||
| Machine siding panel |
|
||||||
| Forming stations | 13-22 stations(according to the profiles) | ||||||
| Machine rollers |
high grade No.45 forged steel,plated hard chroming with thickness 0.05mm |
||||||
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, | ||||||
| Machine spacers | CNC lathing in high-precision | ||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||
| Driving system | 1 inch chain or gear box(option) | ||||||
| Machine power | 3kw-11kw(according to the profiles) | ||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutting
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW
PLC
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
Installation and training:
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30 days after receiving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
