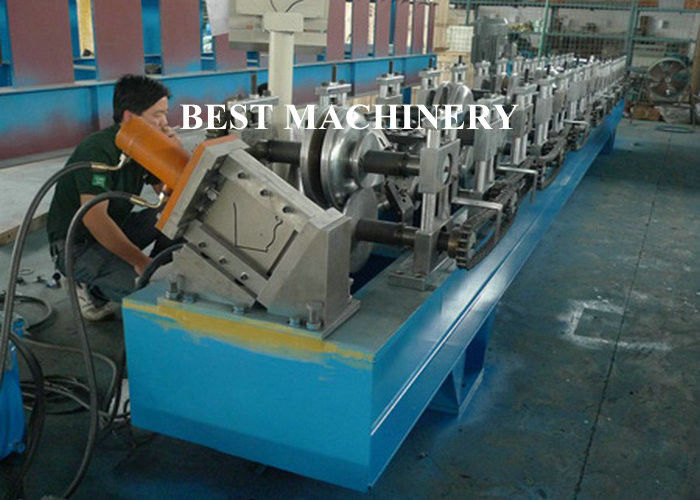

Half Round Water down Gutter Profile Cold Roll Forming Machine

Half Round Water down Gutter Profile Cold Roll Forming Machine
Half Round Water down Gutter Profile Cold Roll Forming Machine Half Round Water down Gutter Profile Cold Roll Forming Machine

Large Image :  Half Round Water down Gutter Profile Cold Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY125
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

Half Round Water down Gutter Profile Cold Roll Forming Machine

Description
Product Name: K Type Aluminium/PPGI Gutter Roll Forming Machine For Take Roof Rainwater Machine Dimention: 9mx1.4mx1.4m
Control System: PLC Warranty: 2 Years
Life Time: More Than 10 Years Cutting Type: Hydraulic
High Light:

metal roll forming machine

,

profile roll forming machine



Half Round Water down Gutter Profile Cold Roll Forming Machine

Application


The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Working flow

Decoiler----feeding----roll forming----cut to length----output table


Machine components



Name Qty.
Decoiler  1set
Forming machine 1set
Cutting device 1set
Hydraulic pump 1set
Output table 1set



Parameter



1. Suitable to process: Color steel plate
2. Width of the plate: 470mm
3. Rollers:18stations
4. Material thickness:0.3-0.8mm
5. Power: 4+4kw
6. Bottom frame: 360H steel
7. Diameter of the roller:Φ70mm
8. Weight: About 6.8T
9. Voltage: 380V 50Hz 3phases
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control



Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:3000KG.Inner diameter: 500-508mm

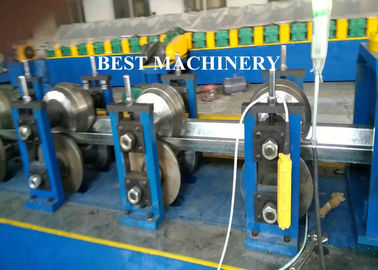

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.



Hydraulic System AND Computer Control Cabinet

Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC: EURA(Can customize as customer require)



Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment



Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.



Working conditions
1.working size 15m x 2m x 4m
2.Power supply 6kw
3.Frequency 50-60HZ
4.Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7.Lift device 3-5t forklift or crane



RFQ



Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.

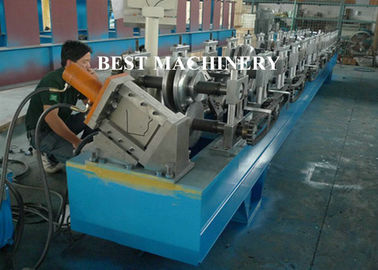

Half Round Water down Gutter Profile Cold Roll Forming Machine 0
