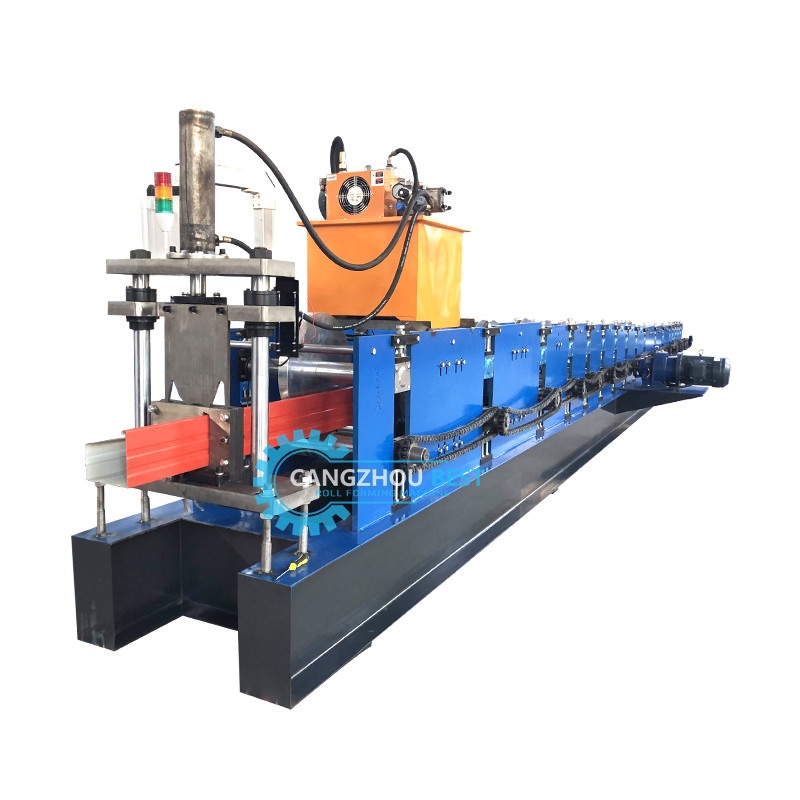

DownSpout Roll Forming Machine Metal Roof Rain Drain Water Gutters

DownSpout Roll Forming Machine Metal Roof Rain Drain Water Gutters
DownSpout Roll Forming Machine Metal Roof Rain Drain Water Gutters DownSpout Roll Forming Machine Metal Roof Rain Drain Water Gutters DownSpout Roll Forming Machine Metal Roof Rain Drain Water Gutters

Large Image :  DownSpout Roll Forming Machine Metal Roof Rain Drain Water Gutters

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY125
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

DownSpout Roll Forming Machine Metal Roof Rain Drain Water Gutters

Description
Product Name: DownSpout Roll Forming Machine Metal Roof Rain Drain Water Gutters Machine Dimention: 9mx1.4mx1.4m
Control System: PLC Warranty: 2 Years
Life Time: More Than 10 Years Cutting Type: Hydraulic
High Light:

metal roll forming machine

,

cold roll forming machine



Down Spout Roll Forming Machine Metal Roof Rain Drain Water Gutters


Working flow

Decoiler----feeding----roll forming----cut to length----output table


Machine components



Name Qty.
Decoiler  1set
Forming machine 1set
Cutting device 1set
Hydraulic pump 1set
Output table 1set



Parameter



1 Material width As your regards
2 The effective width As your requests
3 The thickness of Coil 0.2—0.8mm
4 Application wall sheet and roof sheet
5 The overall dimensions 6800mmX1500mmX1300mm
6 Total weight 5 Tons
7 Main Power 5.5 KW
8 Uncoiler Manual Uncoiler
9 Inner diameter 508--610mm
10 Outer diameter 1200mm
11 Loading weight 5T
12 Forming speed 10—15m/min
13 Forming steps 12 or more stations
14 Bracket welded with 36 # I-steel
15 Material of Shafts

45# steel with rough finished and then

refined finished

16 Diameter of the Roll 76mm
17 Material of Rolls

high quality 45#steel coated with hard

chromium 0.05mm

18 Processing Technology rough processing ---refined processing--Hard Chromium Plating.
19 Material of Rack

complete welded structure of A3 steel

plate 16mm thickness

20 Transmission Transmitted by the chain-bracket
21 Material of Chain 45#steel with heat treatment of HRC45-50°
22 Holders under chain for lubricant By the machine
23 Material of cutting blade Cr12 with quenched treatment 60-62
24 Cutting system Hydraulic cutting
25 Voltage 380V/50HZ/3phase or 415v



Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:3000KG.Inner diameter: 500-508mm

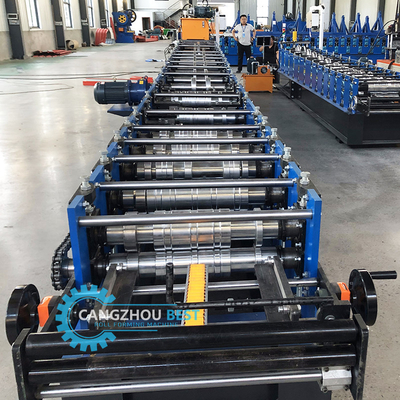

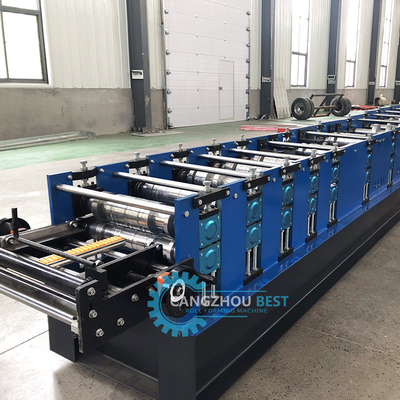

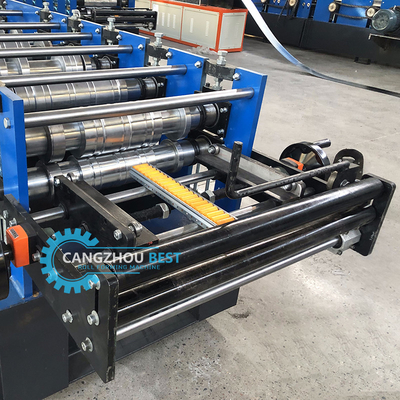

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.



Hydraulic System AND Computer Control Cabinet

Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC: EURA(Can customize as customer require)

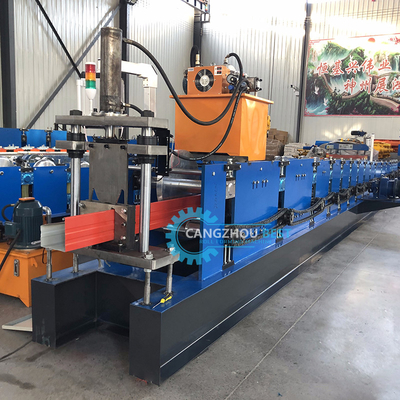

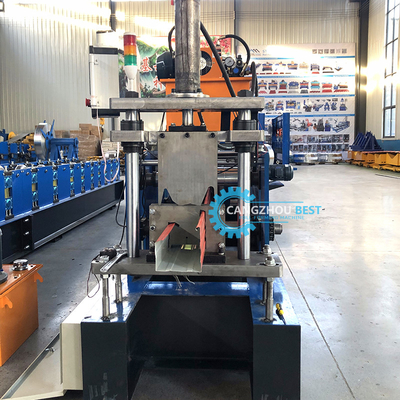

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment



Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products





RFQ



Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.



.
