Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min

Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min
Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min

Large Image :  Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: CHBEST
Certification: BV/CE/SGS
Model Number: YX475
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: naked
Delivery Time: 30days
Supply Ability: 15set/month

Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min

Description
Name: India Design YX475 Standing Seam Roof Sheet Roll Forming Machine Power: 6kw
Speed: 8-12m/min Roller Material: 45#steel
Shaft Diameter: 70mm Transmission: Chain
High Light:

metal roofing equipment

,

metal sheet roof roll forming machine



India Design YX475 Standing Seam Roof Sheet Roll Forming Machine


Working Flow:


Decoiler------feeding------roll forming------cut to length-----output table



Specifications:
No. Item Description
1 Model No. CHBEST
2 Suitable material Color steel sheet ,galvanized steel sheet, Aluminum sheet
3 Working speed 8-12m/min
4 Main motor power 5.5kw with cycloidal reducer
5 Hydraulic station power 4kw
6 Electrical control system PLC control system with famous brand
7 Thickness of material 0.25mm~0.8mm
8 Shaft diameter 70mm
9 Roller station 13 -18stations
10 Material expand axis 1000&1200mm&1250mm
11 Dimension 6500x1500x1500mm
12 Driving mode Chain
13 Electric tension 380V 3phase 50HZ or as the customer's requirements
14 Material of roller High grade 45# forged steel plated with hard chrome plating
15 Material of cutting Cr12 mould steel with quenched treatment
16 Working time Can be 24 hours
17 Workers 1-2 only


Detal information

1. DECOILER


(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs


2. ROLL FORMING MACHINE


(1) Material Thickness: 0.2-0.8 mm PPGI and GI
(2) NO. of roller Stations:up 18groups
Down11groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm
(6) Frame panel thickness:14mm
(7) Bottom frame: 36# H-section steel

3. CUT-OFF DEVICE


(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC55 – 60°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off


4.PLC CONTROL BOX


(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Encoder Brand: Omron
(4) Length Error: ±2mm
(5) Language: English and Chinese
(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)


Standard export packing
1 1*40 GP container ; main machine naked and fastened with iron wire in the container.
2 rollers were painted with oil and packed with plastic film.
3 electrics devices be packed with wooden box.for Standard export packing.


Installation&Training
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

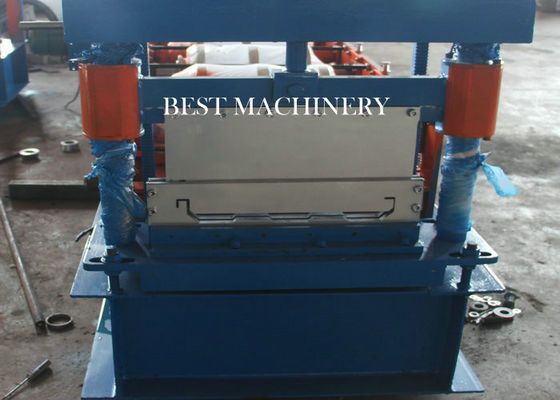

Machine Photo

Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min 0

Customer visiting

Roofing Sheet Standing Seam Roll Forming Machine High Speed 8-12m/min 1
