Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate

Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate
Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate

Large Image :  Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: YX1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard
Delivery Time: 35days
Supply Ability: 15sets/month

Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate

Description
Name: Easy Operate Roofing Cladding Sheet Making Cold Roll Forming Machine Machine Color: As Request
Power: 6kw Speed: 8-12m/min
Roller Diameter: 70mm Roller Material: 45#steel
Shaft Material: 45#steel Customized: Yes
Condition: New Warranty: 2 Years
High Light:

metal roofing equipment

,

metal sheet roof roll forming machine

                                 Easy Operate Roofing Cladding Sheet Making Cold Roll Forming Machine



Metal Roofing Sheet Roll Forming Making Machine for Wall and Roof is very popular in the world, it play a fairly important role in the steel struction building. This machine can produce very beautiful and durable roof tile, With these roof tile, it can protect your roof of house well.



Machine components:



De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Pressing die---------------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set



Main Parameter:



No. Parameter
1 raw material suitable material colored steel coil, galvanized coil, aluminum coil
feeding width 1250mm
effective width 1025mm
thickness 0.8-1.2mm
PS: the feeding&effective width can be any according to your need.
2 rollers material 45#steel
rows 25 rows
3 shafts material 45#steel, solid ones
diameter Φ90mm and 120mm
4 cutting blade hydraulic cutting, Cr12 Mov
5 capacity 15-20m/min, can be faster as your need.
6 weight 13Tons
7 control system PLC control system with inverter inside to assure the working precision within 1mm
8 dimension 11500*1600*1550mm
9 machine base 400mm H beam
10 middle plate 20mm
11 chains double1.2 inch
PS: the above are for reference, we can design according to your requirement



Detail Information



1.DECOILER
(1)Inner Diameter: Φ508 – Φ610 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity: 5000 kg

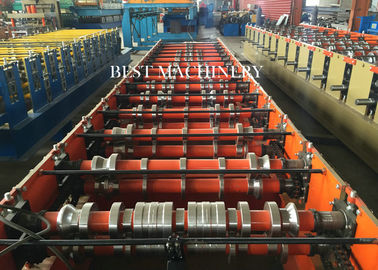

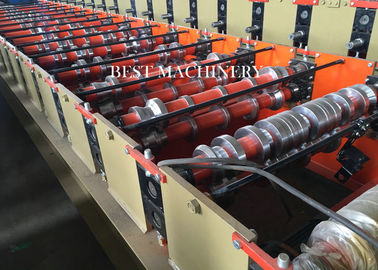

2.ROLL FORMING MACHINE

(1)Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(2)Material for shaft: high grade No.45 steel after treatment

(4)Diameter of shaft: 70mm

(5)Frame panel thickness: 20mm

(6)Bottom frame: 36# H-section steel


3. ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron

(4)Length Error: ±2mm



•Product Feature

* Full automatic * Lower cost * High efficiency

* Reliable working * 18 Month Warranty * Easy Operate

* Low energy consumption * Accurate * Passed ISO9001/CE



Standard export packing
1.1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
3.electrics devices be packed with wooden box.for Standard export packing.



Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 45 days after receiving downpayment
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

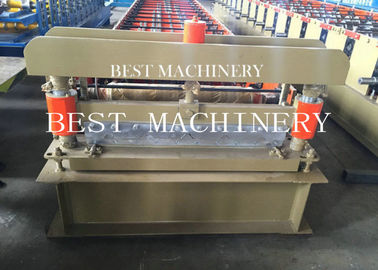

Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate 0

Roofing Cladding Sheet Making Machine / Cold Roll Forming Machine Easy Operate 1
