Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-1020
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material

Description
Name: YX-1020 Color Roof Sheet Roll Forming Machine Hot Selling In China Thickness: 0.3-0.8mm
Bottom Frame: 35# H-section Steel Motor Power: 3kw
Color: Blue Or Customized Raw Material: GI, PPGI
Roller Material: 45#steel Cutting Blade: Cr12
PLC Brand: Delta
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

YX-1020 Color Roof Sheet Roll Forming Machine Hot Selling In China



1. Working flow:



Decoiler------feeding------roll forming------cut to length-----output table





2.Machine details:

Decoiler

YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material 0

(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

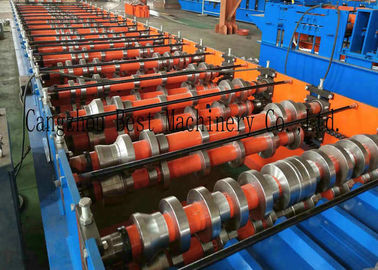

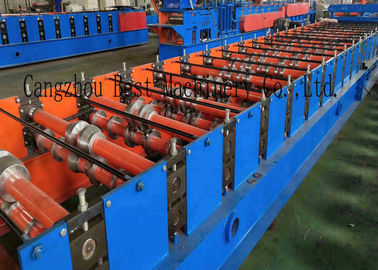

ROLL FORMING MACHINE

YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material 1

(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 70mm

CUT-OFF DEVICE

YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material 2

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58 – 62°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw

PLC CONTROL BOX

                  YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material 3

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

HYDRAULIC PUMP STATION

                 YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material 4

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

PRODUCTION SUPPORT TABLE

        YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material 5

(1) No power type
(2)Length: 2m

Spare part

Chain x1; Bearing x 1; limit switch x1





3.Company information:

  Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



4. Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.





5.Standard Export Packing.

1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.





6.If you want to learn more, please contact me:

   Contact me:Anne Song

   Mail id:sales3@chbestmachine.com

   Whatsapp/Wechat:+86 18045013499



7. Photos for reference:

YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material 6

YX-1020 Color Roofing Sheet Roll Forming Machine GI PPGI Raw Material 7
