Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia

Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia

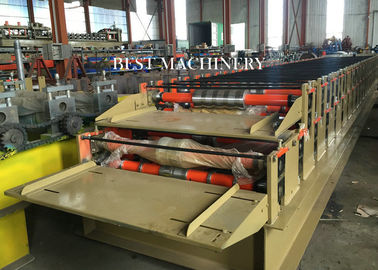

Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia

Large Image :  Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: BEST
Certification: CE/BV/SGS
Model Number: YX988
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 12000 / SET
Packaging Details: naked
Delivery Time: 35days
Supply Ability: 15 sets/ month

Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia

Description
Name: Double Layer Profile Steel Roofing Sheet Roll Forming Machine For South Africa Market Machine Color: As Customer Request
Payment Type: T/T LC Speed: 8-12m/min
Roller Material: 45#steel Panel Thickness: 20 Mm
Power: 8.5kw Raw Material: 0.3-0.8 MM PPGI/ GI
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Double layer profile steel Roofing Sheet Roll Forming Machine for South Africa market



This Color Steel Sheet Double Layer Roof And Wall Roll Forming Machine is perfectly combined two different-model machines together, this can save the space and also is easy to operate. The two models are chose according to customers" need.



Color Steel Sheet Double Layer Roof And Wall Roll Forming Machine consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on



Detail Information



Decoiler



5T manual decoiler

Features: Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.

Power: None;

Power of the open and closure of segments: Mechanical;

Power of rotation of segment: Pull by forming system;

Number of segment: 4pcs;

Range of segment expansion: 460 ~ 520mm;

Height of center of the mandrel: 0.65m;

Feeding speed: depend on the roll forming machine speed;

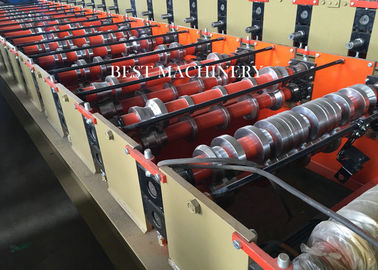

Roll forming machine

Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;

Shaft: manufactured with 45# high grade steel by CNC machine tools;

Supporting frame: steel wallboard to guide the forming station bearing basement;

NO. of roller Stations:up 18groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 70mm

Frame panel thickness:14mm

Bottom frame: 36# H-section steel

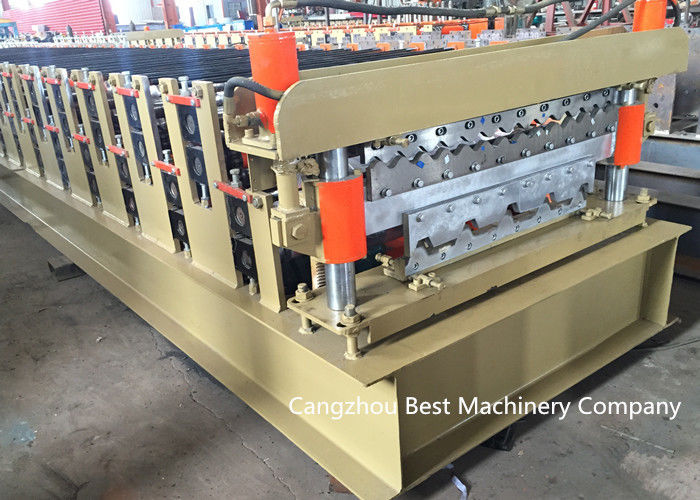

Cutter device

Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

Power supply: hydraulic station;

Frame: welding steel frame;

Stroke switch: non-contact photoelectric switch;

Cutting after forming: cut the sheet after roll forming to required length;

Length measuring: automatic length measuring.





Hydraulic system

Hydraulic station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.





Electric control system

Automatic length measurement: one unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length; length inaccuracy can be amended easily.

Automatic quantity measurement;

PLC is used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved;

Control panel: Button-type switch, LED display length and quantity ;

Unit of length: millimeter;

Motor Over-Load, System Over-Current, Short circuit Protection function;

Display total length and total quantity produced.



Why choose us ?

1. We are professional manufacturer, so we can offer better price and after-sale service and shorter delivery time.

2. We have strong design & technical ability, we can design and manufacture as customer's requirement.

3. Our factory has been approved ISO 9001 certificate.

4. We have much experience for installation and training experience overseas.

5. We have successfully exported our machines to more than 90 countries, We all get good feedback.

6. We provide a free two years warranty for all our items.

7. OEM brand.

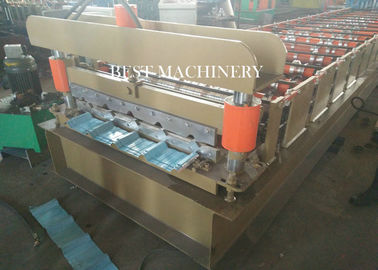

Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia 0




                               Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia 1





Process Flow

Double Layer Profile Steel Roofing Sheet Roll Forming Machine 70mm Shaft Dia 2
