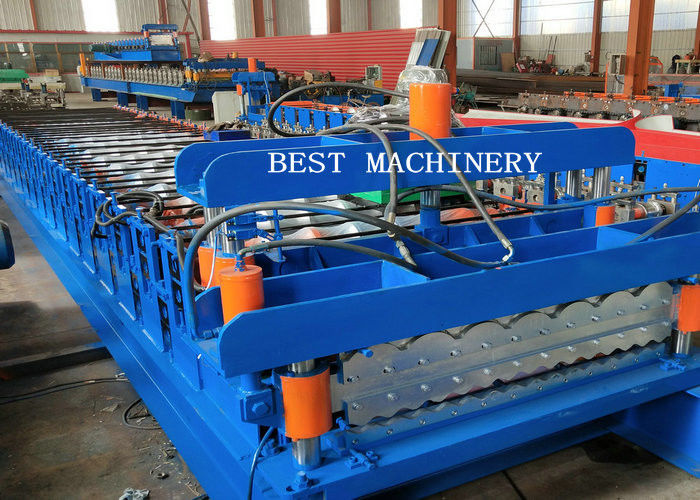

Double Layer Corrugated Steel Sheet Making Roll Forming Machine

Double Layer Corrugated Steel Sheet Making Roll Forming Machine
Double Layer Corrugated Steel Sheet Making Roll Forming Machine Double Layer Corrugated Steel Sheet Making Roll Forming Machine Double Layer Corrugated Steel Sheet Making Roll Forming Machine Double Layer Corrugated Steel Sheet Making Roll Forming Machine

Large Image :  Double Layer Corrugated Steel Sheet Making Roll Forming Machine

Product Details:
Place of Origin: Hebei,China
Brand Name: CHBEST
Certification: CE.ISO
Model Number: CHBEST-840-850
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days
Supply Ability: 15sets/month

Double Layer Corrugated Steel Sheet Making Roll Forming Machine

Description
Name: Double Layer Corrugated Steel Sheet Making Roll Forming Machine Color: As Your Require
Control System: PLC Hydraulic Power: 3kw
Frame Panel Thickness: 14mm Warranty: 2 Year
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

                     Double Layer Corrugated Steel Sheet Making Roll Forming Machine



Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



Double Layer Corrugated Steel Sheet Making Roll Forming Machine 0



Working Flow

Decoiler------feeding------roll forming------cut to length-----output table



Decoiler  1set



Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs



Roll Forming Machine  1set



Thickness 0.3-0.8
Material PPGI GI
Shaft 70mm
Shaft Material 45# steel
Roller Station up 9 groups, down 11 groups
Bottom Frame 350H steel
Power 3kw
Driven 1 inch chain





Cutting Device  1set



Cutting Type

Hydraulic, Automatic Cut-Off

Power 3kw
Cutting Material

Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60°





Control System  1set



Type: PLC Frequency Control System with touch screen
PLC Brand: Delta

Encoder Brand: Omron

Length Error: ±2mm

Voltage: 380v/50HZ, 3Phase



Hydraulic Pump  1set



Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand



Output Table  1set



No power type
Length: 2m







Packing Detall



(1)

*40 GP container ; main machine naked and fastened with iron wire in the container.

(2)

rollers were painted with oil and packed with plastic film.

(3)

electrics devices be packed with wooden box.for Standard export packing.

(4)

All Components Fixed by steel wire with Container.







Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.



After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

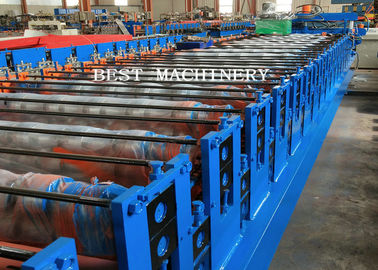

Double Layer Corrugated Steel Sheet Making Roll Forming Machine 1

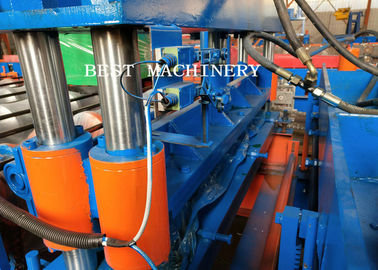

Double Layer Corrugated Steel Sheet Making Roll Forming Machine 2

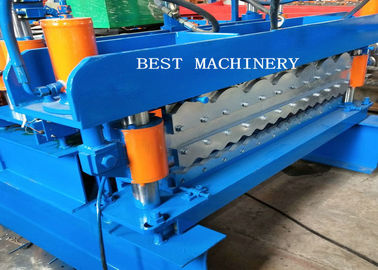

Double Layer Corrugated Steel Sheet Making Roll Forming Machine 3
