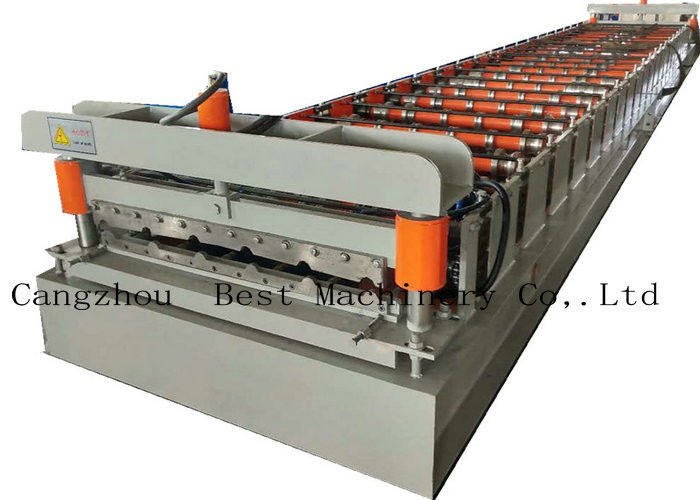

Galvanized Metal Roofing Panel Roll Forming Machine Production Line

Galvanized Metal Roofing Panel Roll Forming Machine Production Line
Galvanized Metal Roofing Panel Roll Forming Machine Production Line Galvanized Metal Roofing Panel Roll Forming Machine Production Line Galvanized Metal Roofing Panel Roll Forming Machine Production Line Galvanized Metal Roofing Panel Roll Forming Machine Production Line

Large Image :  Galvanized Metal Roofing Panel Roll Forming Machine Production Line

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-1041
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Galvanized Metal Roofing Panel Roll Forming Machine Production Line

Description
Name: Galvanized Metal Roofing Panel Roll Forming Machine Production Line Roller Material: Hydraulic Cutting
The Shaft: 70mm Cutting Blade Material: Cr12
Screen: Color Touch Screen Bottom Frame: 350H Steel
Control System: PLC Shet Width: 1041mm
Speed: 8-12m/min Side Panel: 20mm
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Galvanized Metal Roofing Panel Roll Forming Machine Production Line



1. Company information:

    Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



2. Machine details:

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

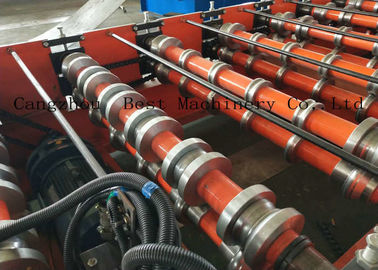

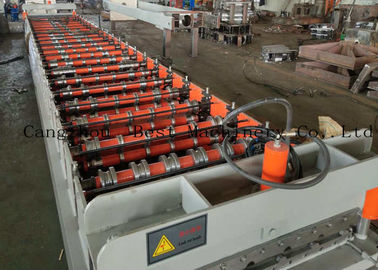

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 70mm

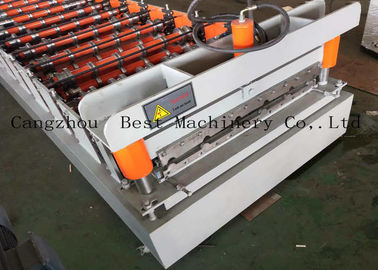

CUT-OFF DEVICE

(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC58 – 62°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kw

PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4) Length Error: ±2mm

(5) Language: English and Chinese

(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2) Oil type: 46# hydraulic oil
(3) Pump brand: China brand

PRODUCTION SUPPORT TABLE

(1) No power type
(2) Length: 2m





3. Parameters

NO Item Para Remark
1 Suitable Material Type Color Steel Sheet
Thickness (mm) 0.4 to 0.7
Yield Strength (Mpa) 230 to 300
(mm) ≤1250
Capacity of Decoiler 5T/8T/10T According to Customer
2 Material of Rollers No.45 Hard Chromeplate
3 Line Speed (m/min) 20/30/50/60
4 Roller Shaft Supporting Structure Guiding Column
5 Electric Control System PLC Brand: Mitsubishi or Siemens
6 Operation Desk Touch Screen + Button



4. Machine production process

Drawing confirmation
After confirming the final profile with the customer, the team of 12 engineers worked out detail workable
parts CAD drawings; After 5 recheck, the production manager arrangement the material for all machine parts.
Start production
Our company owns 12sets rough lathe machine, 20sets precise lathe machine, and 30sets shearing machine, all machine parts start to manufacture.
Product Inspection
Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine.
Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing. Our Inspect team test all roller surface, confirm all part surface paint above 5um.
Mainframe and medium plate: Our Inspect team tests the mainframe and plate cutting precise.
Assembling machine
5 workers assemble and welding one machine body frame by three days.
Machine painting
Putty ensure weld parts surface smoothly, and environment-friendly paint ensures protect worker body and environment.
Machine Manual use test
Confirm the output sheet tolerance within 2mm.
Cutter production
According to the finally manufacture sheet, confirm the blade precise profile, Cr12 MOV steel cutting knife finished by laser cutting.
Storage
To protect the machine surface clear and without damage, we paint again and package by the film.



Why choose us?

1. Our company owned a professional design team, we can design different profiles according to customer’s demands.
2. We design and manufacture machines using advanced standard technology. We have strict control over the quality of the machines, our principle is that “never let one unqualified Machine leave our factory”.
3. Our machines are controlled by computer, PLC display, simple operation, stable and reliable operation, durable and maintenance-free.
4. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
5. Our machine has a long warranty and you can use it without worry after purchase.
6. After purchasing our machine, we will offer easily damaged parts freely.
7. All use well-known brand appliances.
8. Multilingual control system, including Spanish, Russian, English and Chinese.
9. Powerful teach teams with more than 12 years of working experience will help you, improve the design if it is not perfect before selling.
10. 24*7 hours before and after service in English, Russian, Spanish and others.


5. Packing

Standard Export Packing.

1). One 40ft container for loading one set machine with manual decoiler;
2). The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3). Spare parts and some small parts packed in plastic tooling box;
4). All Components Fixed by steel wire with Container.





6. Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Raw materials

In order to help customer save time find good supplier for materials: Prepainted galvanized steel coil, galvanized steel coil, galvalume steel coil (Aluzinc coil), aluminium coil and so on, we can directly provide customer high quality coil with compatitive price


We can produce according to your requirements.
