Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine

Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine
Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine

Large Image :  Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine

Product Details:
Place of Origin: Cangzhou Hebei China
Brand Name: BEST
Certification: CE/ISO
Model Number: BEST-38
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 8500-33000 /SET
Packaging Details: Covered by plastic film
Delivery Time: 30 days
Supply Ability: 10 SETS/ NOUTH

Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine

Description
Raw Material Thickness: 0.2-0.8 Mm Rolled Material: Cold Rolled Steel Sheet
Rollers Number: 16 Groups Diameter Of Shaft: 40 Mm
Bottom Frame: 350 H Steel Motor Power: 5.5 Kw
Driven Type: 1.0' Chain
High Light:

profile roll forming machine

,

metal stud roll former

Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine



Working Flow of Roll Forming Machine



Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting



Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine 0



Main Components



Machine list 3 ton passive de-coiler 2 sets
Hydraulic punching device 3 sets
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Locking device for joints 1 unit
Out table 2 units



1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs


2.ROLL FORMING MACHINE
(1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 0.2-0.4mm
(3)Rollers: 16 Groups
(4)Material for Rollers: Cr12 steel

(5)Material for shaft: 45# steel(quenching and Harding and chroming)

(6) Hardness for Heat Treatment: HRC55 – 60

(7)Diameter of shaft: 40mm

(8)Frame panel thickness: 20mm

(9)Bottom frame: 36# H-section steel
(10)Motor Power: 5.5kw

(11)Driven type: Chain


5.CUT-OFF And PUNCHING DEVICE
(1)Material for Cut-Off Modular:Cr12 steel
(2)Hardness for Heat Treatment:HRC55 – 60
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off

(5)Material for punching die: Cr12steel

(4)Power: 5.5kw





4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen

(2)Length Error: ±1mm

(3)Language: English and Chinese

(4)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)





5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

(3)Power:5.5kw+3kw



6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m





Profile of product

Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine 1

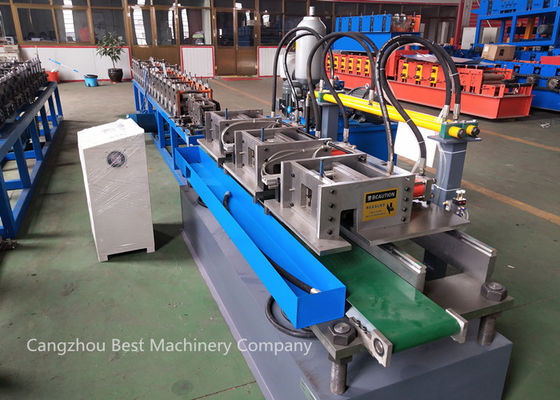

Machine Photo:



Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine 2



Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine 3



Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine 4



Construction T Grid Cold Rolling Steel Bar Making Machine Ceiling Roll Forming Machine 5



Why choose us ?



1. We are professional manufacturer, so we can offer better price and after-sale service and shorter delivery time.

2. We have strong design & technical ability, we can design and manufacture as customer's requirement.

3. Our factory has been approved ISO 9001 certificate.

4. We have much experience for installation and training experience overseas.

5. We have successfully exported our machines to more than 90 countries, We all get good feedback.

6. We provide a free two years warranty for all our items.

7. OEM brand.
