Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency

Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency
Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency

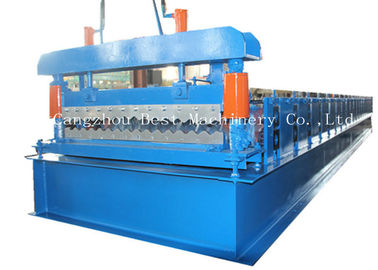

Large Image :  Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-836
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6000-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency

Description
Name: Corrugated Automatic Roof Sheet Roll Forming Machine Supplier For Sales Raw Material: GI,PPGI
Condition: New Usage: Roof Building
Control System: PLC Warranty: 2years
Effective Width: As Your Require Voltage: Requirements
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Corrugated Automatic Roof Sheet Roll Forming Machine Supplier For Sales

1. Machine component:

COMPONENT FOR Roof Sheet Roll Forming Machine
Name
Quantity
Units
Decoiler
1
Set
Main Machine
Feeding device
1
Set
Roll forming system
1
Set
Cut Equipment
1
Set
Hydraulic system
1
Set
Electric control system
1
Set
Supporter/Automatic Stacker
1
Set



2.Parameters:

No. Item Specification
1 Steel coil Width

Max

1250/1220/1219/1000/914mm

Material Ppgi/gi/gl/Alu-zinc
Thickness

0.21-0.29mm

0.3-0.6mm

0.3-0.8mm

Hardness Normal hardness/G550/HRB90
2 Forming Frame 300-450mm Height
Stations

As design of drawing

Main: 9-18 stations

Rollers

High grade No 45# steel with

hard 0.05mm chromed

Shaft High grade No 45# steel
Diameter of shaft

As design of drawing

Main: 70-80mm

Chain Main: 1-1.5inch
3 Control PLC control China/Taiwan/Japan/Germany brand
Main motor Main: 3-11kw
Language English or as your request
4 Cutting Cutter High grade Cr12 steel
Cutting system Hydraulic
Hydraulic pump Main: 3-7.5kw
Cutter frame Steel plate welding
5 Decoiler Manual 5 Tons
6 Product Receiving table Manual

We can also talk and confirm other details before ordering. We can give you suggestions.



Choose us, own professional service.



3. Machine details:

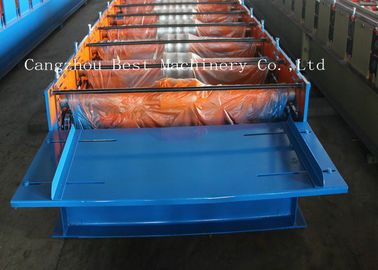

Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency 0

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 20groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm

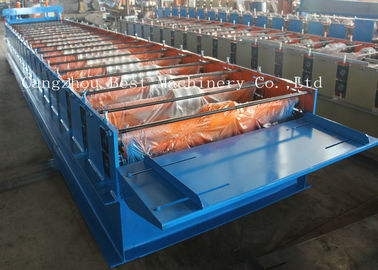

Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency 1

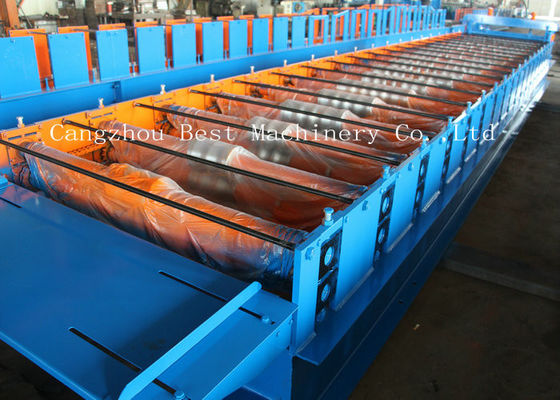

Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency 2

CUT-OFF DEVICE
(1) Material for Cut-Off Modular:Cr12 steel after treatment
(2) Hardness for Heat Treatment:HRC55 – 60°
(3) Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kWw

PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase
(it depends on customer requirement)

             Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency 3

             Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency 4

HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m

Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency 5


4.Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.


5.FAQ:
1)How to get a quotation of corrugated roof panel roll forming machine?
Give me the profile drawing and thickness ,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.


2)Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.
70% by T/T before loading and after inspection.

3)What is your after-sale service?
corrugated roof panel roll forming machine warranty period is 24 months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of roll forming machine.


4)How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



Send me inquiry, I can send you more details.



6.Photos for reference:

Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency 6Corrugated Automatic Roofing Sheet Roll Forming Machine 380v 50HZ Frequency 7
