Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control

Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control
Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control

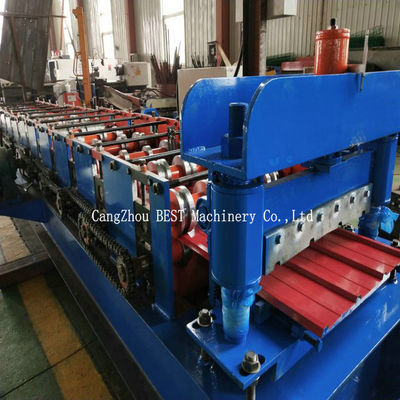

Large Image :  Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control

Product Details:
Place of Origin: China,Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-840
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days
Supply Ability: 15sets/month

Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control

Description
Name: Trapezoidal Roof Sheet Metal Roll Forming Machine Supplier PLC Control Color: As Your Require
Material: PPGI/GI Control System: PLC
Roller Station: 11groups Warranty: 2year
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

                  Trapezoidal Roof Sheet Metal Roll Forming Machine Supplier PLC Control



Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set



Working Flow

Decoiler------feeding------roll forming------cut to length-----output table



Decoiler

Width 1250mm

Inner Diameter

450-550mm

Out Diameter

1500mm
Capacity 5000kg
Type Manual Or Hydraulic



Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

Roller Stations: 11groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 70mm

Shaft Material: 45# steel

Frame panel thickness: 14mm

Bottom frame: 36# H-section steel
Motor Power: 3kw

Driven type: 0.6"Chain
Speed:8-12m/min



Cutting Device

Hydraulic Power 3kw
Cutting Type

Hydraulic, Automatic Cut-Off

Cutting Blade Material

Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°



Control System

Type: PLC Frequency Control System with touch screen
PLC Brand:Delta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



Hydraulic Pump

Motor Power 3kw
Oil Type

46# hydraulic oil

Pump Brand

China Brand





Output Table

No power type
Length: 2m







Company Proifle

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.





Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control 0

Trapezoidal Metal Sheet Roof Roll Forming Machine PPGI/GI Material With PLC Control 1
