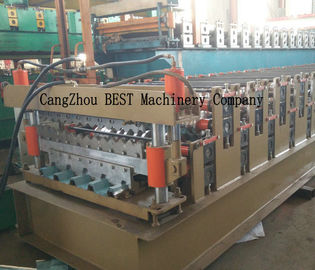

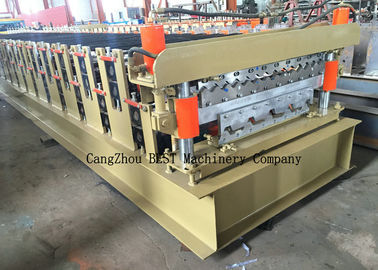

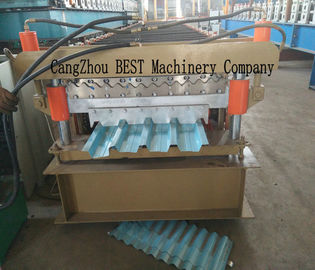

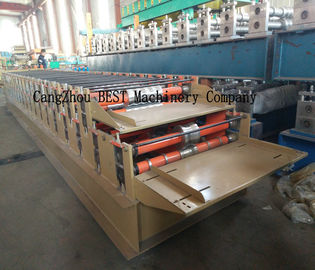

686 762 Double Layer Roofing Sheet Forming Machine 350H Steel Roofing Roll Formers

                   686 762 Double Layer Roof Sheet Roll Forming Machine 350H Steel

Machine Component

Work Flow

Decoiler------feeding------roll forming------cut to length-----output table

Decoiler

Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

Roller Stations:up16groups  down20groups

Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 5.5kw

Diameter of shaft: 70mm

Shaft Material: 45# steel

Driven type: 1.0＂Chain

Cutting Device

Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW

PLC Control Box

Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand

Output Table

No power type
Length: 2m

Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.

Our Service

Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
