Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type
Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type

Large Image :  Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-840
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type

Description
Name: Aluminum IBR Roof Sheet Profile Making Roll Forming Machine Manufacturer Tile Type: Colored Steel
Power(W: 4+4kw Cutting Type: Hydraulic
Voltage: 380V 50Hz 3phases Condition: New
Warranty: 2years Color: Client's Request
Control System: Plc Production Capacity: 15-20m/min
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Aluminum IBR Roof Sheet Profile Making Roll Forming Machine Manufacturer





1.Profile drawing: we can produce according to your requiremetns

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 0



2.Working flow:

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 1

3.Machine details:

DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs



Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 2

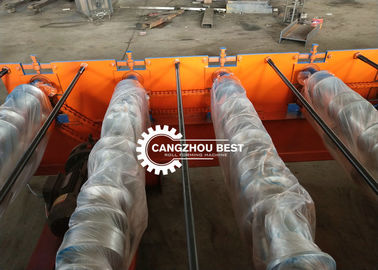

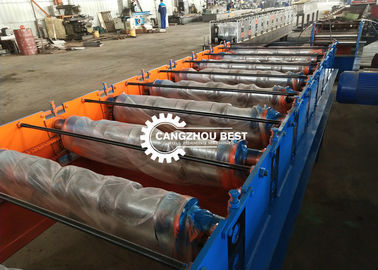

ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 11 groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 3

CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58 – 62°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 KW

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 4

PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

              Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 5

HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

           Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 6

Finished Product Table:

(1)Length: 2m

(2)Type: manual without power

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 7



4.FAQ



1)Are you manufacturer?

Yes, we are manufacturer with 17 years experience , we sell machine both domestic market and international market



2)What information you need before quote me?

We need your profile drawing and raw material thickness ?



3)What payment terms you accept?

T/T and L/C both ok with us



4)Can you make machine according to my design or photo type ?

Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.



5)What is the warranty for our machine?

We have TWO yearS guarantee, and provide whole life's technical support



6)Is there any spare part send for free?

Yes, Oil pipe , buttons , limited switch ,relay



7)Do you also sell coils ?



Yes, we have



8)Do you have instruction manuals ?



We will provide instruction manuals , operation video



9)What kind of controls do you use on your machine ?



AMS, Delta, Schneider, Siemens, and Mitsubishi



10)Is engineer available to service overseas market ?



Yes , we can send technician to your company for installation and adjustment , Training your workers to operate the machine . Buyer should charge for visa,round ticket ,food and accommodation overseas and pay salary per day.



11)How many workers is needed for the machine operation ?



One worker is enough ,as the machine can be connected with a computer to have an automatic cutting system



12)How to go to our company?



Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick you up there and drive you to our factory for a visit

Fly to Tianjin Airport: then we can pick up you.

If any questions,you can call me mobile phone at any times:0086-18045013499



13)How to contact us ?



Send your inquiry details in the below for free sample , Click “Send ” Now !



5.Packing:

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 8

Aluminum IBR Roofing Sheet Roll Forming Machine Colored Steel Tile Type 9
