Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting

Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting
Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting

Large Image :  Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-475
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days
Supply Ability: 15sets/month

Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting

Description
Name: Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting Main Motor Power: 3kw
Color: As Your Require Warranty: 2 Year
Thickness: 0.4-0.5mm Material: PPGI/GI
High Light:

ridge cap machine

,

steel roof tile forming machine

                          Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting



Machine Component

Decoiler 1set
Roll Forming 1set
Cutting Device 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set



Decoiler

Inner Diameter

450-550mm

Out Diameter

1200mm

Max. Loading Capacity

3000kg
Type Manual Or Hydraulic



Roll Forming Machine

Rolled Material: PPGI and GI

Material Thickness: 0.4-0.5mm
Rollers: 12steps

Roller Material: 45# steel

Frame panel thickness: 14mm

Bottom frame: 36# H-section steel
Motor Power: 3 kw
Rolling Speed: 8-10 m / min

Driven type: 1.0"Chain

Diameter of shaft: 70mm

Material for shaft: High grade No.45 steel after treatment

Hardness for Heat Treatment: HRC55 – 60℃



Cutting Device

Material for Cut-Off Modular:Cr12 steel
Hardness for Heat Treatment:HRC55 – 60℃
Motor for Hydraulic Stand:3 kw



Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta

Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



Hydraulic Pump

Motor Power

3kw

Oil Type

46# hydraulic oil
Pump Brand

China brand



Output Table

No power type
Length: 2m



Work Flow

Decoiler-----feeding-----roll forming ----cut to length----output table

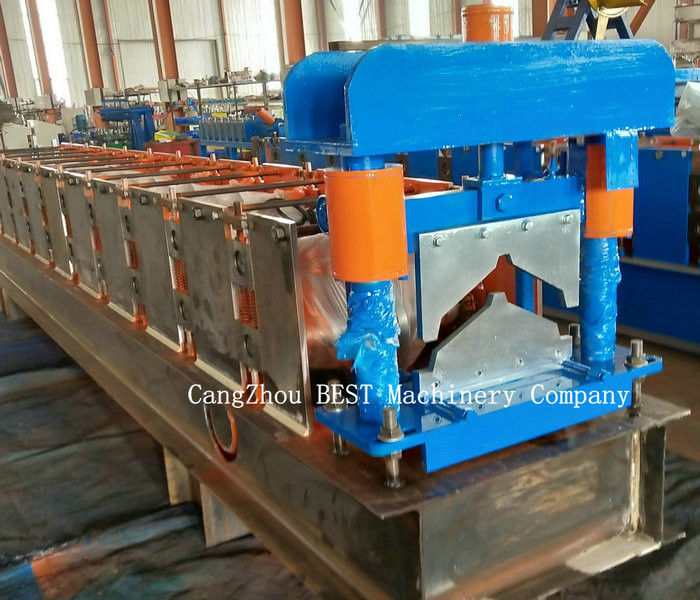

Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting 0



Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.





Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

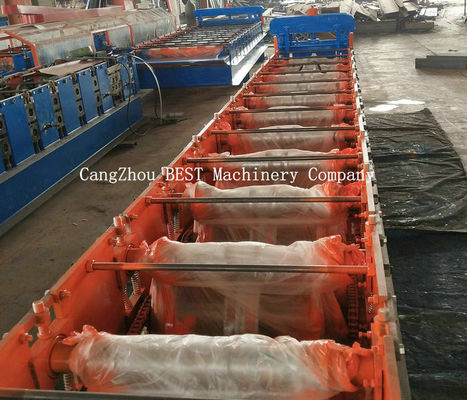

Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting 1

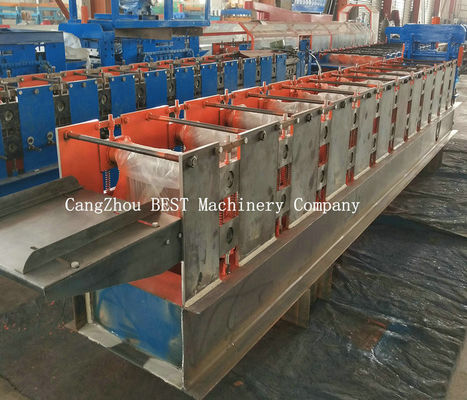

Ridge Cap Chain Driven Roll Forming Machine 350H Steel With Hydraulic Cutting 2
