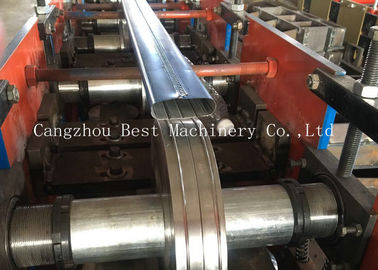

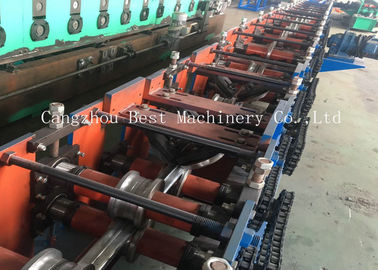

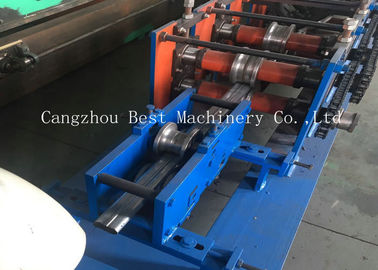

Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power

Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power
Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power

Large Image :  Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-120
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power

Description
Name: Customized Oval Duct Pipe Roll Forming Making Machine Popular In Asia Warranty: 2years
Voltage: 380v Power(W): 4.5kw
Place Of Origin: Hebei,China Production Capacity: 8-12m/min
Useful Life: 20years Color: As Your Request
High Light:

downpipe roll forming machine

,

pipe roll forming machine

Customized Oval Duct Pipe Roll Forming Making Machine Popular In Asia



Company Information.

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



1. Machine component:

Name
Units
Quantity
Decoiler
Set
1
Main machine
Feeding device
Set
1
Roll forming system
Set
1
Post Cut Equipment
Set
1
Hydraulic system
Set
1
Electric control system
Set
1
Supporter/Automatic Stacker
Set
1



2. Main parameters:

Decoiler

(1) decoiler:3 tons

(2) inner diameter:350-450mm

(3) outer diameter:1200mm



Forming Part

(1) rows of rollers:18 rows

(2) roller material:CGR15 ball bearing steel

(3) axle material:#45

(4) axle diameter:70mm

(5) side board thickness:14mm

(6) chassis:360Hfashioned iron

(7) motor power:11.5 kw

(8) driving method:chain

(9) raw material:0.3mm,0.35mm, 0.4 mm

(10) speed :15 m/min

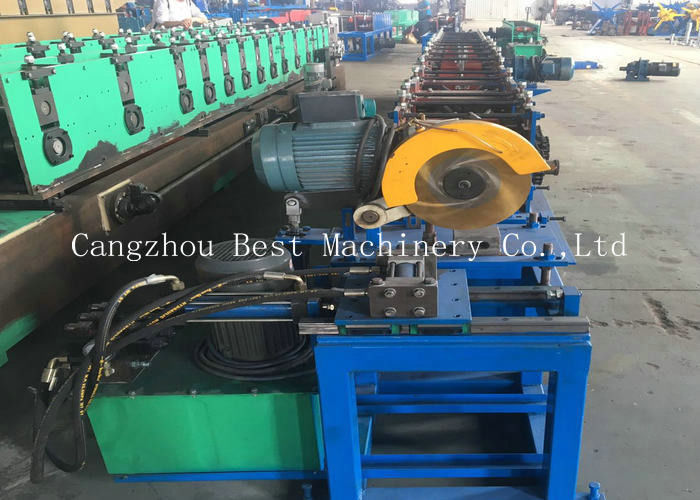

Cutting machine

(1) cutter material : CR12

(2) motor power:5.5 kw

(3) cutting method:flying saw


Control system
PLC control system



3. Details:

Decoiler

(1) decoiler:3 tons

(2) inner diameter:350-450mm

(3) outer diameter:1200mm



Shaping Part

(1) rows of rollers:18 rows

(2) roller material:CGR15 ball bearing steel

(3) axle material:#45

(4) axle diameter:70mm

(5) side board thickness:14mm

(6) chassis:360Hfashioned iron

(7) motor power:11.5 kw

(8) driving method:chain

(9) raw material:0.3mm,0.35mm, 0.4 mm

(10) speed :15 m/min

(4) machine weight: 4.5 tons



Cutting machine

(1) cutter material : CR12

(2) motor power:5.5 kw

(3) cutting method:flying saw

control system

Servo Tracking Controlling System, PLC



4. Main Features

1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.



5. Packing:

tandard Export Packing.
1)One 40ft container for loading one set machine with manual decoiler;
2)The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3)Spare parts and some small parts packed in plastic tooling box;
4)All Components Fixed by steel wire with Container.

6. Our service:

Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power 0

Customized Oval Duct Pipe Roll Forming Making Machine 380v 4.5kw Power 1
