1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine

1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine
1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine 1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine 1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine 1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine

Large Image :  1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD6500-25500/SET
Packaging Details: 40GP/20GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine

Description
Name: 1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine Use: Roofing
Production Capacity: 8-12m/min Warranty: 2years
Control System: PLC Raw Material: GI,PPGI
Cutting Type: Hydraulic Cutting The Shaft Dia: 80mm
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine



Main technical parameter

Manual Un-coiler
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Auto Main Forming System
◊ Max Feeding width:1200 mm
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: C45 steel
◊ Diameter of shaft: 80mm
◊ Forming station: 18stations.
◊ Base Frame: 360 H steel welded..
Hydraulic Cutting Device
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 4 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc





Packing:



Standard Export Packing.

1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.





Our service:



Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.

Warranty: 24 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.



Guarantee:

18 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.

After-sale service:

We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.



Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

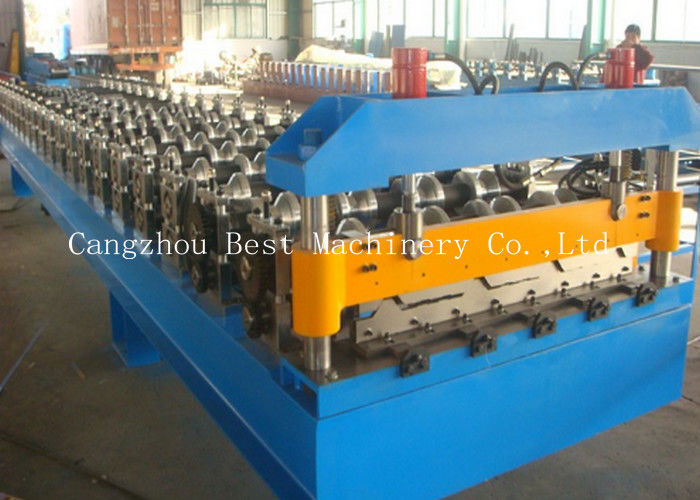

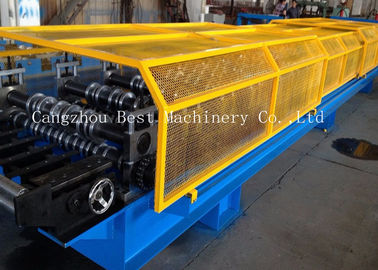

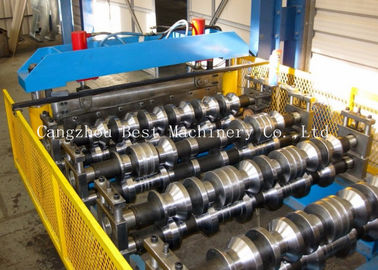

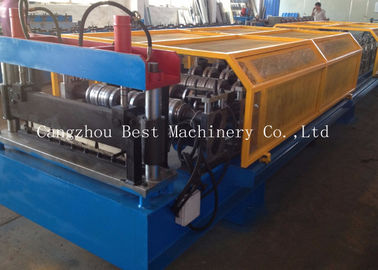

Machine photos:

1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine 0

1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine 1



1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine 2



1200mm Raw Material Width Roofing Panel Sheet Roll Forming Making Machine 3
