Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material
Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material

Large Image :  Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-840
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5500-25500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 5+60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

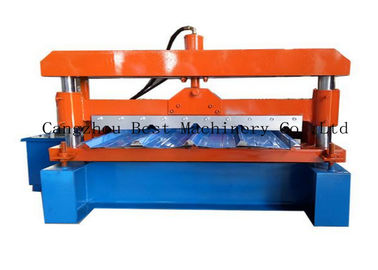

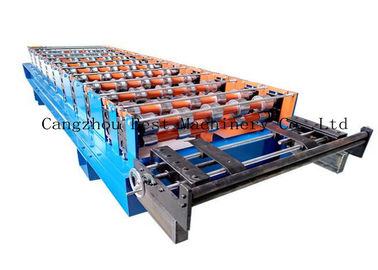

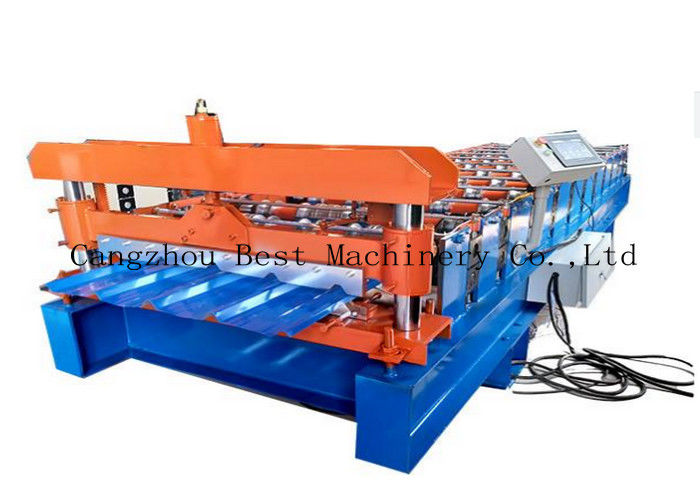

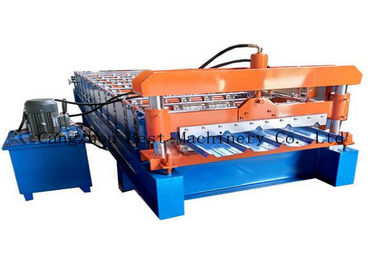

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material

Description
Name: Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material Color: Customized
Condition: New Use: Roofing
Raw Material: GI.PPGI,AL Control System: PLC Control Box
Power: 3+3kw Cutting Type: Hydraulic
Warranty: 2years Customized: Yes
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material



Production Describ:

Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables



Machine Component:

Name
Units
Quantity
Decoiler
Set
1
Main machine
Pre-cutting device
Set
1
Feeding device
Set
1
Roll forming system
Set
1
Hydraulic system
Set
1
Electric control system
Set
1
Supporter/Automatic Stacker
Set
1



Machine detais:

(1). 5T manual decoiler

Power: None;

Power of the open and closure of segments: Mechanical;

Power of rotation of segment: Pull by forming system;

Number of segment: 4pcs;

Range of segment expansion: 460 ~ 520mm;

Height of center of the mandrel: 0.65m;

Feeding speed: depend on the roll forming machine speed;

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 0

(2). Sheet guiding device

Features: Ensure smooth& precise material feed.

Components: steel plate platform, two pitching rollers, position stopping block.

The coil is guided in the correct position and passed to the roll forming equipment.

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 1

(3). Roll forming system

Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;

Shaft: manufactured with 45# high grade steel by CNC machine tools;

Supporting frame: steel wallboard to guide the forming station bearing basement;

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 2

(4). Post cutter

Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

Power supply: hydraulic station;

Frame: welding steel frame;

Stroke switch: non-contact photoelectric switch;

Cutting after forming: cut the sheet after roll forming to required length;

Length measuring: automatic length measuring.

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 3

(5). Support table

Feature: finish product collection;

Material: steel frame and nylon shaft;

Table length: 3 m * 2;

Max supporting length: 12m.

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 4

(6). Hydraulic station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 5

(7). Electric control system

Automatic length measurement: one unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length; length inaccuracy can be amended easily.



Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 6



Finished product for reference:

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 7



Machine Assembling:

Trapezoid Roofing Sheet Roll Forming Making Machine For Building Material 8
