High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall
High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall

Large Image :  High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,SGS,BV
Model Number: YX-T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD9500-35500/set
Packaging Details: 40GP/20GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall

Description
Name: High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall Place Of Origin: Hebei, China
Warranty: 2years Main Motor Power: 5.5kw
Control System: PLC Color: As Your Request
Material Thickness: 0.3-0.6mm Production Capacity: 25-30m/min
Customized: Yes
High Light:

steel stud roll forming machine

,

metal stud roll former

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall





Main T: equiped with inverter motor, producing in line speed: 30M per minute. Hydraulic automatic punching and cutting machine linked withmain forming machine,punching and cutting automatically. Two heads and middle holes are punched and cut-off at the same time after forming.

Cross T: equiped with both inverter and servo motor producing in line speed: 30M per minute. Main machine with constant speed,it is tracedby the servo trace system, automatic tracing the speed of the main machine, punching and cutting automatically. Two heads and middle holeare punched and cut-off at the same time after forming.

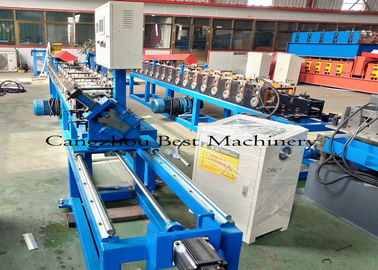

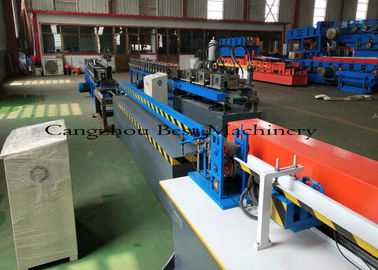

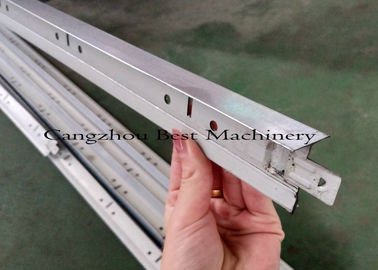

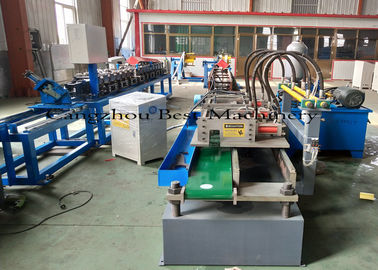

Machine Photos:

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 0

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 1

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 2

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 3



High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 4





Technician parameter

No. item Parameter(all is subject to our final design)

1



Suitable raw material Type Common galvanized & pre-painted steel
Yield strength 235MPa(or other high strength steel)
Thickness(mm) 0.4-0.7
width(mm) According to final design
2 Manual uncoiler’s capacity Max.5tons
3 Forming speed(m/min) About 25-30m/min
4 Main motor power(KW) 5.5kw
5 Hydraulic power(KW) 5.5kw
6 Forming roller groups Around 19-20 groups
7 Raw material of forming roller High quality No.45 steel
8 Raw material of cutting blade Cr12mould steel with quenched treatment
9 controlling system Mitsubishi PLC& converter
10 Suitable industrial voltage According to your special requirement
11 Machine weight About 6.2tons



Main T Grid Machine Working Flow:

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 5

Cross T Grid Machine Working Flow:

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 6

Loading:

Standard Export Packing.

1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 7High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 8

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 9High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 10



About Us:

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

High Speed Stud And Track 25m/min T Grid Roll Forming Machine For Ceiling Drywall 11



Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.



Please inquiry me, get more details and full machine video.
