Product Details:
|
| Place Of Origin: | Hebei,China | Name: | Gear Box Driven Unistruct Channel Roll Forming Making Machine With Long Life |
|---|---|---|---|
| Condition: | New | Warranty: | 2 Years |
| Control Type: | PLC | Voltage: | 380V |
| Color: | As Your Request | Weight: | 10t |
| Raw Material: | GI | Production Capacity: | 8-12m/min |
| High Light: | cable tray production line,steel profile roll forming machine |
||

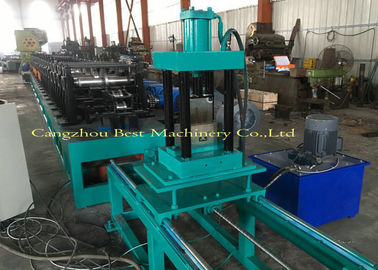

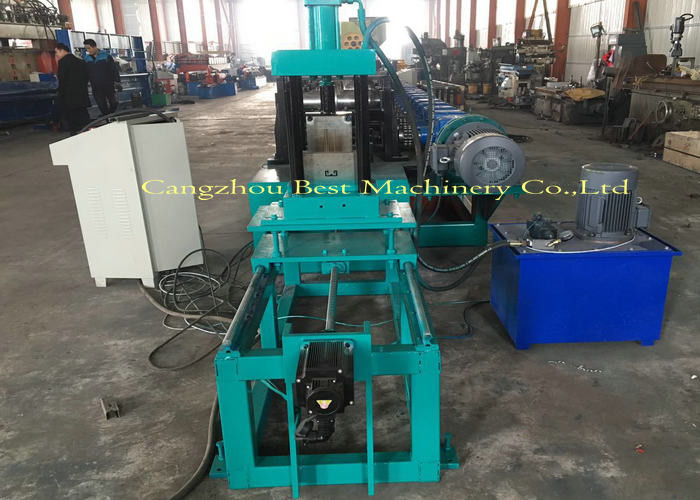

Gear Box Driven Unistruct Channel Roll Forming Making Machine With Long life
Solar Support System advantages of the solar panel support far beyond the simple production and installation. Flexible solar
panels can also move according to the sun's rays and season. Just as when installed, each solar panel by moving the inclined
surface fastener can be adjusted to accommodate different bevel angles of the light, again by fastening solar panel is fixed
accurately at the specified location.
Solar support system related products made of carbon steel and stainless steel surfaces do hot galvanized outdoor use for 30 years
does not rust. Features: No welding, no drilling, 100% adjustable, 100% reusable.
Machine components list:
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Leveling device | 1 | set |
| 3.Punching machine | 1 | set |
| 4.Forming machine | 1 | set |
| 5.Cutting device | 1 | set |
| 6.PLC control box | 1 | set |
| 7.Hydraulic pump station | 1 | set |
| 8.Production support table | 1 | set |
Machine Parameters:
DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs
LEVELING DEVICE
(1)Rollers for Leveling: 7 rollers
PUNCHING DEVICE
(1)Punching type: mechanical
(2)Pressure:63t

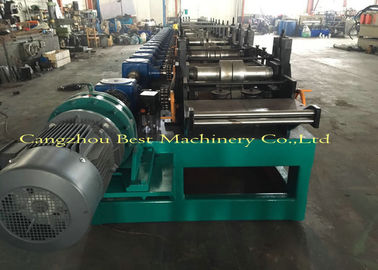

ROLL FORMING MACHINE
(1)Material Thickness: 1.5-2.5 mm
(2)Rollers:22 Groups
1.Thickness of material :1-2.5mm
2.Forming speed:10-15m/min
3.Total power:15KW
4.Driven type:by Gear
5.Control system:PLC control
6.De-coiler type:Automactic

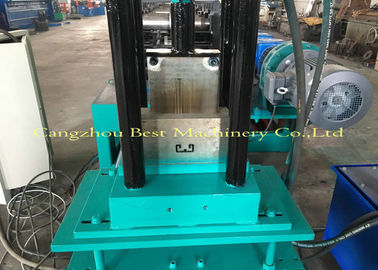

7.Hydraulic cutting system is controlled by computer
8.The machine will be operated by the auto PLC controlling system, which makes the operation more convenience to be controlled.
9.The profile will be pre-punched then be roll formed, that’s the big different with the traditional production ,which is faster and more safety than the traditional one.
10.Producing different specification can be finished by changing the die, and the bending machine
Loading:
Standard Export Packing.
1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
