Product Details:
|
| Name: | 300mm 400mm 500mm Tapered Standing Seam Metal Roof Forming Making Machine | Warranty: | 2 Years |
|---|---|---|---|
| Use: | Roof | Condition: | New |
| Power(W): | 5.5kw | Voltage: | 380v |
| Weight: | 4.5t | Place Of Origin: | Hebei, China |
| Production Capacity: | 8-12m/min | Cutting Type: | Hydraulic |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
300mm 400mm 500mm Tapered Standing Seam Metal Roof Forming Making Machine
1. Main Accessories:
(1) Main Standing Seam Roof Panel Machine;
(2) 5 Tons Manual Decoiler;
(3) Hydraulic System;
(4) PLC Computer Controlling System with touch screen;
(5) Device for making taper standing seam roofing;
(6) Hydraulic Forming Cutter;
(7) Run out table;
(8) Manual Seamer;
(9) Tools;
2. Main Techincal Data:
| Size | YX65-300-400-500 | KLS25-220-530 |
| Dimension | 5800*1600*1400mm | 2000*1300*1400mm |
| Weight | 7000KGS | 1200KGS |
| Motor Power | 7.5KW | 1.5KW |
| Hydraulic Power | 2.2KW | 0.75kw |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH |
| Forming Steps | 13 steps | 6 steps |
| Forming Speed | 8-15m/min | 8-12m/min |
| Effective Width | 300mm,400mm,500mm | 220-530mm |
| Material of Width | 470mm,575mm,680mm | 290mm-600mm |
|
Material of AL-Mg-Mn,Galvanized Sheet Thickness |
0.4-1.0mm | 0.4-1.0mm |
| Material Thickness | 0.5-0.8mm | 0.5-0.8mm |
| Standing Height of Roofing | 65mm | 25mm |
|
Thickness for common use and testing machine |
0.6mm, 0.7mm (material: PPGI, GI, Aluminum) |
0.6mm, 0.7mm (material: PPGI, GI, Aluminum) |
3. Main Usage:
1. One machine can produce the straight standing seam roofing 300mm,400mm,500mm, and tapered standing seam roofings
2. Can automatically product variable width of roofing from 300mm to 500mm;
3. Widely use in the large project such as:railway station,airport , gymnasium etc.
4. Can product trapezoid roofing and straight roofing.
4. Our Service:
1) Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.
2) Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .
3) After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
4) Warranty: 12 months
During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.
5. Our Factory:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

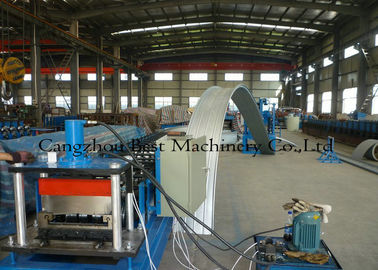

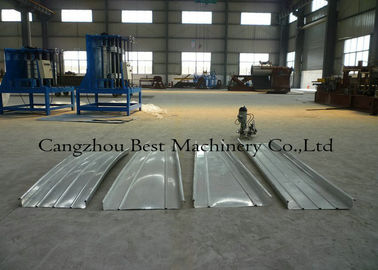

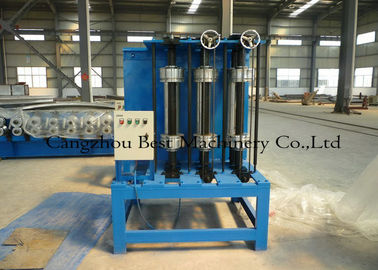

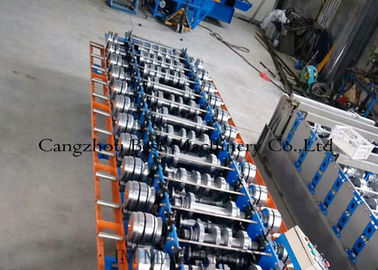

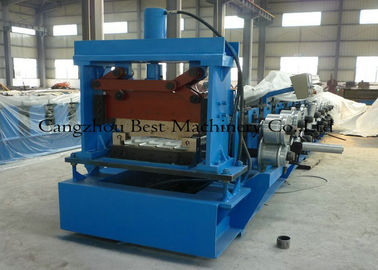

6. Machine Photo:
