Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine

Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine
Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine

Large Image :  Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD9500-USD25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine

Description
Name: Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine Warranty: 2 Years
Yield Strength: 235-400Mpa Color: As Your Request
Place Of Origin: Hebei,China Output: 8-12m/min
Condition: New Raw Material: Galvanized
Thickness: 0.3-1.0mm Side Wall Thickness: 20mm
High Light:

cold roll forming machine

,

profile roll forming machine

Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine

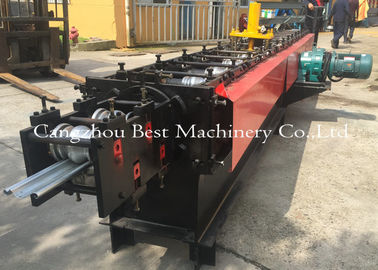

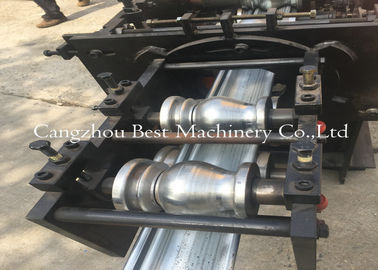

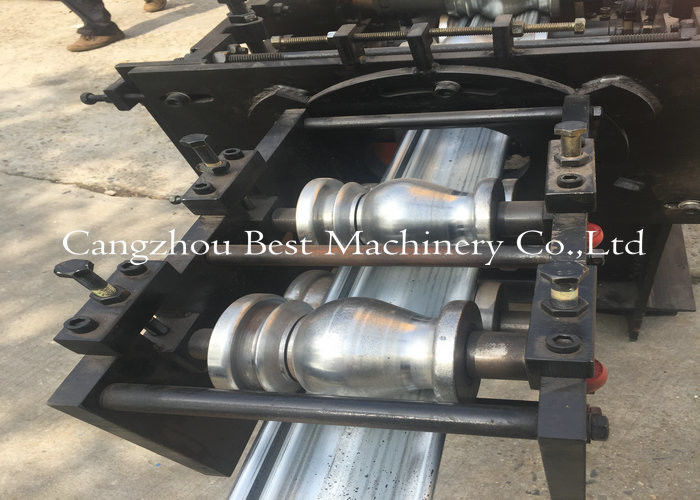

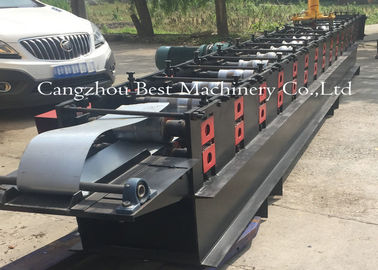

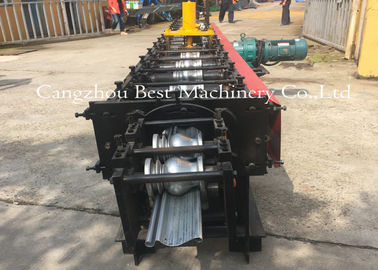

Machine photos:



Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine 0



Machine parameters:

Uncoiler (manual/automatic) Weight Capacity 3T
Inner Diameter 460-520mm
Outside Diameter 1400mm
Coil width Max 600mm

Feeding and

straightening device

Pinch rollers one pair, up and down
Straightening rollers up three, down four
Diameter of rollers 75mm
Roll Former Frame type single station
Forming Roller stand about 14 Groups
Shaft material First grade 45# steel,
Shaft diameter 75mm
Roller material GCr15
Drive Type Chain of transmission
Motor

15KW reducer

with frequency control

Roll stand type

split type,

two sides forming separately

Size changing time 15 min
Automatic size changed by slide screw and angle gear which guarantee the complete synchronization and the material thickness is adjusted by eccentric distance of passive rollers.
Punching Type Hydraulic
Mould material Cr12
Holes distance Can be adjusted

Cutting 1

Hydraulic cutter

Type After-cutting, hydraulic
Material of mould Cr12
Cutting tolerance 10M+/- 2.0 mm

Cutting 2

Fly saw

option
PLC cabinet PLC PANASONIC
Length Controller Encoder
Operation Touch Screen
Transducer Mitsubishi
Hydraulic station Power 7.5 KW
Hydraulic pressure 11 Mpa
Runout Table Non-power type



Profile drawing for reference:we accept customized

Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine 1

Our service:

1.We have professional team to make different kinds of roll forming machines for our customers,
from designing, processing,assembling, debugging, delivery.
2.we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion and salary per day in your country.
3.You can send your men to our factory. we will teach them how to operate the machine without training charges.
4.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
5.Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support.
If there is any problems happened to the machine, we will provide solution at once.





Hope we could establish win-win business relations in the soon future!



Packing and Loading:

Container 20GP/40GP container
Packing Main machine naked and fastened with wire rope in the container.All electrics devices be packed with plastic film.

Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine 2Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine 3

Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine 4Galvanized Metal Steel Garage Roller Shutter Slat Door Roll Forming Machine 5
