YX-800/840 Double Layer Roof Sheet Tile Roll Forming Making Machine Low Price
Working flow:
Decoiler—Roll Forming Machine——Control System——Hydraulic cutter--------Receiving table
Specification:
| Performances |
Parameters |
|
| Suitable material |
PPGI or galvanized coil |
| Suitable material |
Raw material width:1000 and 1250mm
thickness 0.3-0.8mm
|
| Productivity |
12-15m/min |
| Roller forming steps |
17 step |
| Roller material |
45# after heating treatment and with chromium |
| Spacer, balance bar, screw |
All do chromium to ensure beautiful appearance |
| Diameter of active shaft |
Φ70mm |
| Main machine structure |
350H |
| Wall plate |
20mm |
| Power |
3KW main motor,cycloidal reducer work stable and no noise |
| Shear |
Hydraulic shear, blade material CR12 |
| Transmission |
1’’ gear chain |
| Control system |
Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen.
Program is made by English, working mode: automatic and manual
|
| Hydraulic system |
3kw hydraulic motor |
| Voltage |
AC380V/50HZ/3 phase or AC220-240V/60HZ/3 phase or AC220-240V/60HZ/single phase |
| Upgrade manual decoiler |
Max loading weight:5000kgs,Inner Diameter:508-610mm,max coil width:1250mm |
| Set off table |
one pcs, 6 step roller, each is 3000mm long |
| Size(length*width*height) |
9000*1500*2500MM |
| Weight |
7500kgs |
| Component |
Upgrade manual decoiler-guide feeding-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table |
PS: the above are for reference; we design machines according to your needs.
Payment term:
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
Warranty: 18 months, and lifelong technical support service
Installation: If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay salary everyday
Package: Standard export package, water-proof package, covered with plastic film
FAQ:
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

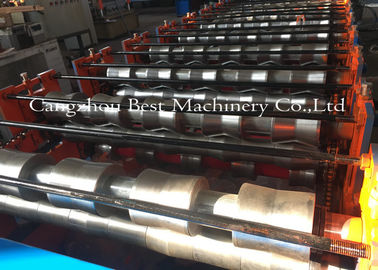

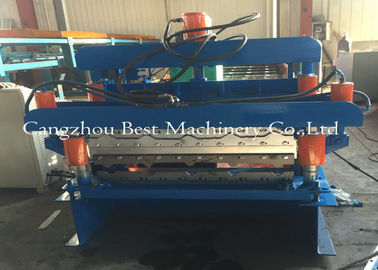

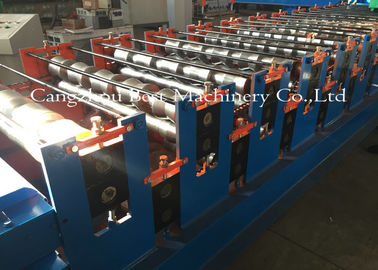

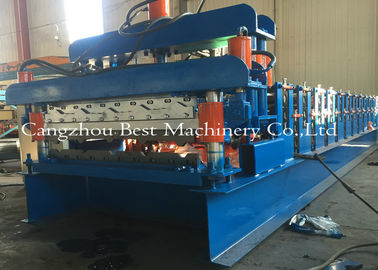

Machine photos:
