Name: YX-800/1000 Glazed Metal Roof Tile Building Material Forming Machinery Machine Raw Material: GI,PPGI,AL
Warranty: 2 Years Customized: Yes
Color: Customized Power: 4+3kw
Use: Roof Building Cutting: Hydraulic
Control System: PLC Place Of Origin: Hebei,China
High Light:

roof panel roll forming machine

,

steel roof tile forming machine

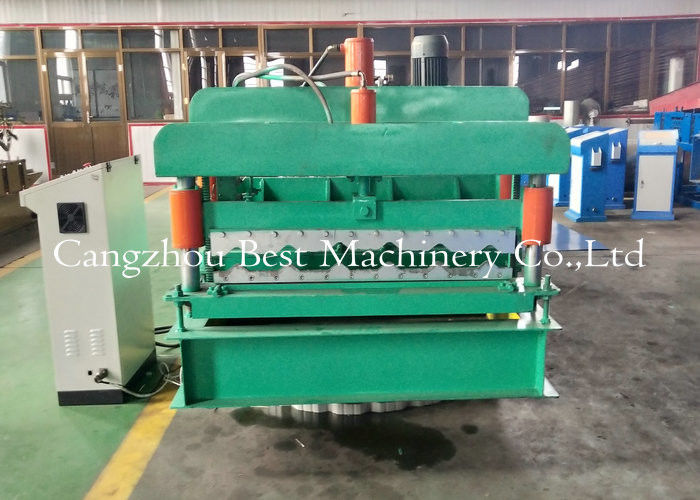

YX-800/1000 Glazed Metal Roof Tile Building Material Forming Machinery Machine

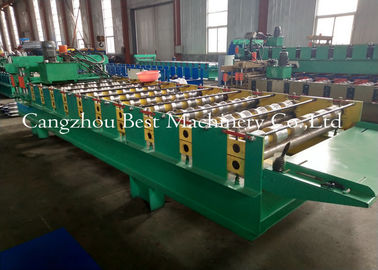

Machine component:

Item Name Qty
1 5T Manual Decoiler 1
2 Feeding platform with hand cutting system 1
3 Main forming system 1
4 Hydraulic cutting system 1
5 Hydraulic pump station 1
6 Electrical motor 1
7 PLC control system 1
8 Touch screen operation 1
9 Finished products receive table 1
10 Safety shield(optional) 1
11 Hydraulic decoiler(optional) 1
12 Automatic stacker(optional) 1



Working flow:

Decoiler---Feeding&Guiding---Roll Forming---Hydraulic Pressing&Cutting---Receiving Table

High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor 0



Machine production:

1. Un-coiler: 5 tons passive
2. Insider diameter of the un-coiler: 450-550mm

High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor 1

1. Pressing and cutting way: Hydraulic cut.
2. Hydraulic power: 3kw hydraulic system.

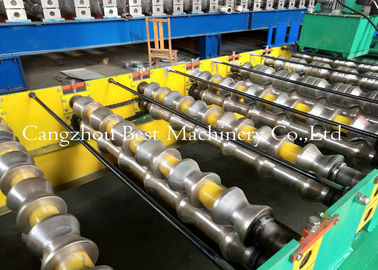

3. Blade Material: CR12Mov with heat treatment HRC58-62.



High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor 2



1. Material Thickness: 0.3-0.8mm PPGI and GI

2. Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

3. Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor 3

1.Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
2.Control panel: Button-type switch and touch screen
3.The language in the touch screen: English and Chinese
4.Unit of length: millimeter (switched on the control panel)
High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor 4

1.Motor power: 3 kw
2.Oil type: 46# hydraulic oil
3.Pump brand: China brand

High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor 5

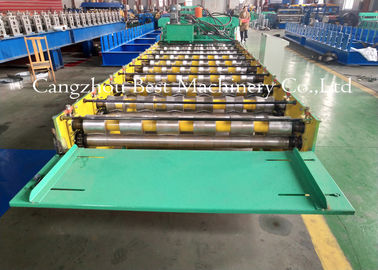

1.It adopts welded steel and supported roller to transmit the products.

High Perofrmance Roof Tile Roll Forming Machine Durable Electrical Motor 6



Technology parameters



Name of Roll Forming Machine

 Metal Roof Tile Making Machinery

Profile Drawing or Sample Picture

 IMG_5712

1

Suitable raw material

PPGI/PPGL/GI/GL Steel Coils

2

Thickness of coil sheet

0.3-0.8mm

3

Feeding Coil width

1000mm/1200mm

4

Effective width

800mm/1000mm

5

Under frame

350H-beam

6

Diameter of Soild shaft

70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway

7

Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

8

Thickness of middle plate

Guide pillar memorial archway

9

Forming stations

16

10

Drive type

By chain(1.0 inch) link bearing model 6210

11

Power of main motor

4kw with Cycloidal reducer, Lichao, Shanghai

12

Power of pump station

4kw, Lichao, Shanghai

13

Forming speed

About 15-20m/min

14

Hydraulic cutting

Controlled by PLC

15

PLC

DELTA, TAIWAN / Mitsubishi, Japan

16

Material of cutting blade

Cr12Mov, quenching 58-62℃

17

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial

standard ±3mm).

18

Switch

CHNT

19

Transducer

SAJ
