Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control

Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control
Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control

Large Image :  Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY50x24
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 9500
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control

Description
Product Name: Drywall Partition C U Profile Omega Angle V Type Stud And Track Light Steel Keel Forming Machine Control System: PLC
Cutting Type: Mould Cutting Warranty: 2 Years
Lifetime: 10years Roller Material: Cr12 Mov
Shaft Material: 45#steel
High Light:

steel stud roll forming machine

,

profile roll forming machine

Drywall Partition C U Profile Omega Angle V type stud and track Light steel Keel forming machine

We supply the Complete roll forming Production line for producing Grid system, Suspended ceiling grid Ceiling T Grid, suspended ceiling grid, Exposed Ceiling Grid, T-bars, T-grid, Ceiling T grid ceiling, T Runner in the various models and sizes, Flexibility in the choice of the sizes, of the pitches and of profiles section, Possibility to produce also complex profiles, with special shapes and systems with or without clip; Average or high productivity lines; Dedicated or combined lines for the production of both Main Runners and Cross-T; Innovative solutions for any level of skill.



Working flow


Decoiler------feeding------roll forming-------cut to length-----output table



Profile Drawing

Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control 0





Machine Components



Name Quantity(set)
De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1



Parameter



Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 5.5 kw
Pump Power 3kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 12-14m/min
Hydraulic Pressure 18-20MPa
Forming Size 80mm
Feeding Thickness 1.5-3.2mm
Roller Station 12 Stands
Roller Diameter 60mm
Backboard Thickness 16mm
Chain Size 66mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 9500×1400×1350mm
Total Weight 6T





Working conditions
1.Machine size 10m x 1.2m (L XW)
2.Working size 20m x 2.5m (LXW)
3.Power supply 8.5kw
4.Frequency 50-60HZ
5.Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8.Lift device 3-5t forklift or crane

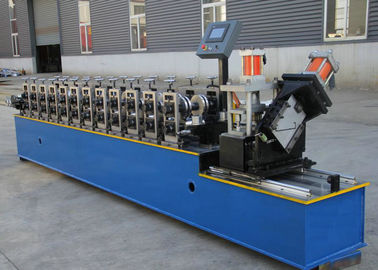

Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control 1

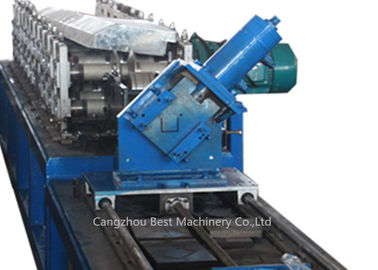

Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control 2

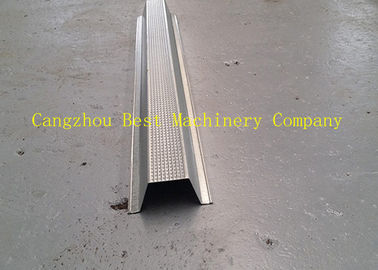

Drywall Partition C U Profile Metal Stud And Track Roll Forming Machine PLC Control 3





Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.



RFQ



Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.
