Hydraulic Automatic Wall Board Scaffolding Panks Decking Panel Plate Machine

Description
Name: Hydraulic Automatic Wall Board Scaffolding Panks Decking Panel Plate Machine Color: As Request
Speed: About 10m/min Roller Material: Gcr15 Steel
Shaft Material: 45#steel
High Light:

cable tray production line

,

steel profile roll forming machine



Hydraulic Automatic Wall Board Scaffolding Panks Decking Panel Plate Machine



Our Machine Advantage



1. Good quality: We have a professional designer and experienced engineer team already 20years.And

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within 18 months since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.



Parameter:



Thickness of the sheet 1.5-2mm
Main frame 350mm H steel
Thickness of the plate 18mm
chain 2"
Roller material: GCr15 Quench 62-64°
Roller station 16 rows
Diameter of the roller 80mm,45 steel
Hydrulic power 7.5kw
Speed: 8-12m/min



1.DECOILER With Car



(1)Inner Diameter: Φ450 – Φ550 mm
(2)Out Diameter: 1000 mm
(3)Max. Loading Capacity: 5000 kg

(4)Type: hydraulic

(5)Main power:5.5kw

(6)Hydraulic power:5.5kw

(7)Control system: control box



2.LEVELING DEVICE:


(1)Thickness: 3.2mm
(2)Rollers for Leveling: 5 rollers
(3)Material for shaft: GCr15 steel
(4)Hardness for Heat Treatment: HRC55 – 60

(5)Power:1.5kw





3.Punching machine with servo feeding



(1)Pressure:160t Yangli Brand

(2)Mould:1set

(3)Servo motor: 3 kw

(4)Speed: about 20m/min

(5)Power:7.5kw

(6)Punching die:3pcs(two for flat hole one diameter is 13mm another is 16mm,another for dip hole)





4.ROLL FORMING MACHINE (include embossing roller)



(1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 3.2mm
(3)Rollers: 18Groups Shafts: Φ80mm, 45#forge steel, thermal fining
(4)Material for Rollers: GCr15 steel after treatment

(5) Hardness for Heat Treatment: HRC55 – 60

(6)Frame panel thickness: casting type

(7)Bottom frame: 40# H-section steel
(8)Motor Power:18.5kw

(9)Driven type: gear box

(10)Embossing machine speed:max20m/min

Punching speed:max8m/min(please note speed is theory, may have error in fact speed)



5.Cutting Device



(1)Type: hydraulic cutting
(2)Power:5.5kw
(3)Material for Cut-Off Modular:Cr12 steel after treatment



6.ELECTRONIC CONTROL SYSTEM


(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase

(it depends on customer requirement)



♦ GUARANTEE:

12 MONTHS GUARANTEE. IF SOME PART OF THE MACHINE IS BROKEN.WE WILL SUPPLY THE BEST PART, BUT IF THE DAMAGED PARTS DUE TO OPERATE ERROR, BUYER WILL PAY FOR THE SHIPPING FEE.



♦ AFTER-SALE SERVICE:

WE SENT TECHNICIAN TO YOUR COUNTRY TO FIX THE MACHINE.THE BUYER SHOULD BEAR ALL THE COST INCLUDING:VISA,ROUNDTRIP TICKET AND SUITABLE ACCOMMODATION,ALSO BUYER SHOULD PAY THE SALARY 100USD/DAY.



Product Photo

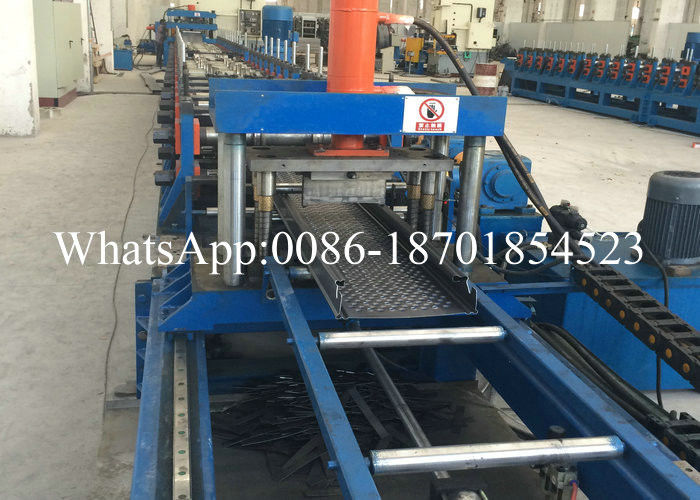

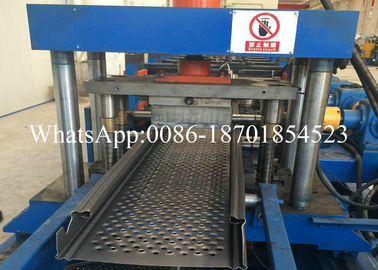

Hydraulic Automatic Wall Board Scaffolding Panks Decking Panel Plate Machine 0

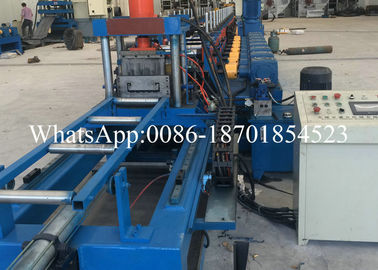

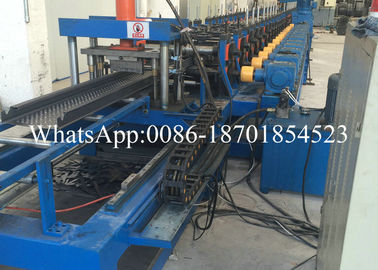

Hydraulic Automatic Wall Board Scaffolding Panks Decking Panel Plate Machine 1
