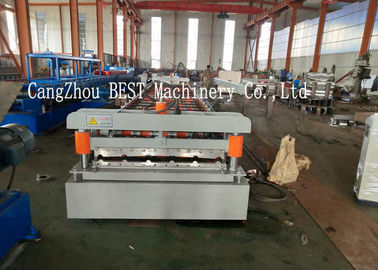

Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine

Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine
Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine

Large Image :  Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-1041
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD+8000+SET
Packaging Details: Standard
Delivery Time: 35sets
Payment Terms: L/C, T/T, Western Union, MoneyGram

Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine

Description
Name: Trapezoidal Roof Sheet Making Roll Forming Machine Hydraulic Cutting 380V Color: As Your Require
Thickness: 0.3-0.8mm Voltage: 380V/50HZ/3PHASE
Warranty: 2 Year Speed: 8-12m/min
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine



Machine Component

Name NO. Unit
1.Decoiler 1 set
2.Forming machine 1 set
3.Cutting device 1 set
4.PLC control box 1 set
5.Hydraulic pump station 1 set
6.Production support table 1 set



Decoiler

Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs

Type:Manual Or Hydraulic

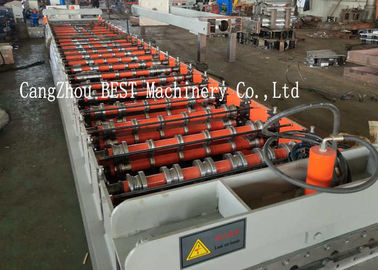

Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

NO. of roller Stations: 19groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness: 20mm

Bottom frame: 350 H-section steel
Motor Power: 5.5kw

Driven type: 1.0"Chain

Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 70mm

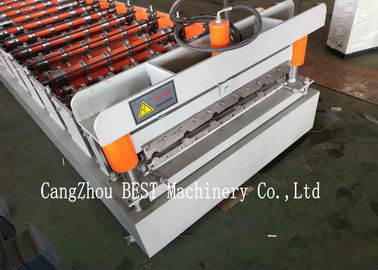

Cutting Device

Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW



Control System

Type

PLC Frequency Control System with touch screen

PLC Brand

Delta

Encoder Brand

Omron

Length Error

±2mm

Language

English and Chinese



Hydraulic Pump

Motor power

3kw
Oil Type

46# hydraulic oil

Pump Brand

China brand

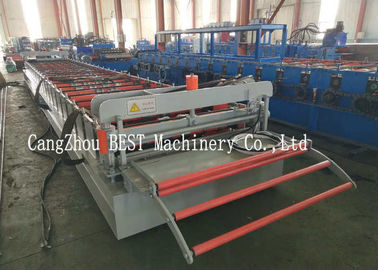

Output Table

No power type
Length: 2m







Work Flow

Decoiler------feeding------roll forming------cut to length-----output table

Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine 0



Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.



Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-Sales-Service Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.

After-sales service



Technical Support



Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.



Other Product

Roof sheet machine, c z purlin machine, highway guardrail machine, double layer machine, ridge cap machine, water tube machine, roof tile machine, cable tray machine, roller shutter door machine, water gutter machine, sandwich panel machine, ceiling drywall machine and so on.





Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine 1Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine 2Zinc Galvanizing Trapezoidal Roofing Sheet Roll Forming Machine 380V Roofing Sheet Making Machine 3
