High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System

High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System
High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System

Large Image :  High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY35-700
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System

Description
Product Name: Color Steel Clip Lock IBR Roof Sheet Panel Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 8-12m/min Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

roofing sheet making machine

,

metal sheet roof roll forming machine

Color Steel Clip Lock IBR Roof Sheet Panel Roll Forming Machine



Roofing Color Steel Sheet Self Lock Standing Seam Roll Forming Machine for steel sheet or aluminum sheet cold-form industries. It can form the steel sheet according to customer's requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realize the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel roof or wall panel. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.


Working Flow


Decoiling-active feeding-roll forming-measuring length-cutting to length-product to stand



Component



No Items Quantity Remarks
1 Manual/Hydraulic Uncoiler 1set Up to customer
2 Main formingmachine Pre-cutting device 1set Up to customer
Feeding device 1set
Hydraulic system 1set
Roll forming system 1set
Post cutting device 1set
Protective cover 1set Up to customer
3 PLC control system with touch screen 1set
4 Run out table 4pcs Up to customer



Parameter



Suitable material Color steel sheet , galvanized steel sheet,
Machine Sizes 9200mm×1300mm×1500mm
Main motor power 7.5KW with Cycloidal reducer
Hydraulic station power 5.5KW
Hydraulic oil 40#
Thickness of material 0.3mm~0.8mm
Diameter of principal axis Φ75mm
Material expand width 600mm
Electric tension 380V 3phase 50HZ
Material of roller High grade 45# forged steel
Galvanization thickness 0.05mm
Processing speed 16-20m/min
Processing precision 10m+/-1.00mm
Cutting blade Cr12 mould steel with quenched treatment
Kind of drive 1 inch chain link bearing model 6210
Roller station

17 Rollers





Our Service



Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 30 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.

Warranty: 18 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee.



Package



Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.

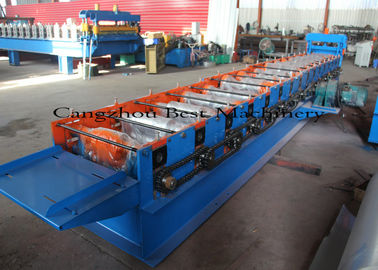

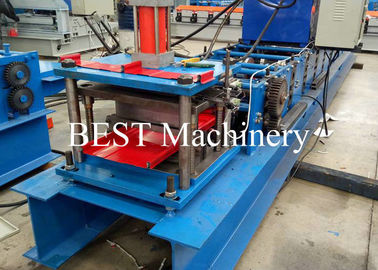

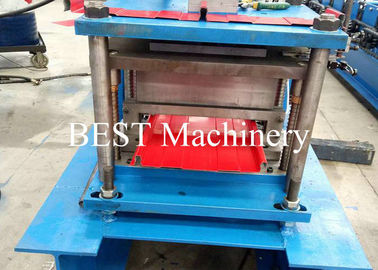

Machine Photo

High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System 0

High Speed Metal Roof Roll Forming Machine , Roofing Roll Formers PLC Control System 1
