Product Details:
|
| Name: | Customer Customized Used For Carriage Board Sheet Roll Forming Machine | Color: | As Your Request |
|---|---|---|---|
| Warranty: | 2 Years | Cutting Type: | Hydraulic |
| Control System: | PLC Control | Place Of Origin: | Hebei, China |
| Customized: | Yes | Voltage: | 380V |
| Weight: | 5-7tons | Production Capacity: | 8-12m/min |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

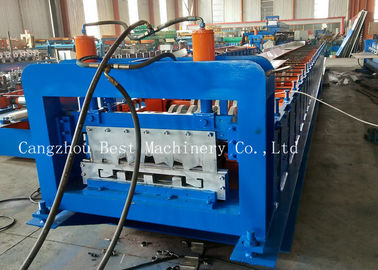

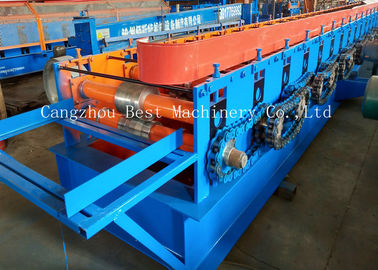

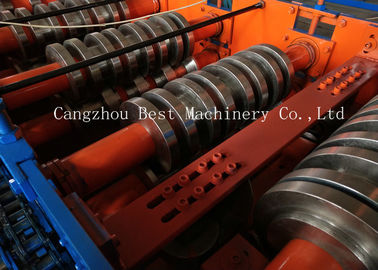

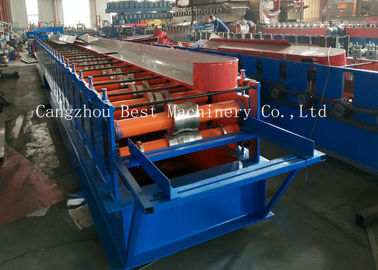

Customer Customized Used For Carriage Board Sheet Roll Forming Machine
Working Flow:
Decoiler------feeding------roll forming------cut to length-----output table
Our equipment description:
|
No. |
Carriage Board Machine |
|
|
1 |
Suitable material |
Color steel sheet ,galvanized steel sheet, aluminium sheet |
|
2 |
Width of material |
1200mm or as you required |
|
6 |
Thickness of material |
1-3.0mm or as your needs |
|
2 |
Working speed |
10-20m/min |
|
3 |
Main motor power |
22kw with cycloidal reducer |
|
4 |
Hydraulic station power |
4kw |
|
5 |
Electrical control system |
PLC control system |
|
7 |
Shaft diameter |
80mm |
|
8 |
Roller station |
15 rows |
|
10 |
Dimension |
7500x1500x1910mm |
|
11 |
Weight |
About 5 T |
|
12 |
Voltage |
380V 3phase 50HZ or as the customer's requirements |
|
13 |
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
|
14 |
Material of cutting |
Cr12 mould steel with quenched treatment |
|
15 |
Working time |
Can be 24 hours |
|
16 |
Workers |
1-2 only |
Technical parameters:
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 2mm
(3) Main motor power: 7.5kw
(4) Pump power: 4kw
(5) Shaft diameter: 75mm and solid forming shaft
(6) Forming steps: 15 steps.
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: 350H steel
(9) Medium plate thickness: 20mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 60Hz or as your requirement
(12) 0veral sized: bout 6800mm*1500mm*1500mm
Our service:
1. Warranty :2 years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Our Company:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Contact Person: Mr. Arno Hao
Tel: +8618717894416
