Product Details:
|
| Name: | Light Steel Keel Ceiling Angle Roll Forming Machine PLC Control 380V50HZ | Color: | As Your Require |
|---|---|---|---|
| Thickness: | 0.5-1.0mm | Bottom Frame: | 350H Steel |
| Warranty: | 2 Year | Shaft Material: | 45# Steel |
| High Light: | profile roll forming machine,metal stud roll former |
||

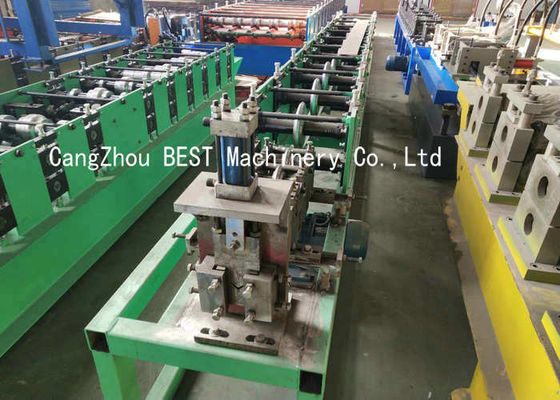

Light Steel Keel Ceiling Angle Roll Forming Machine PLC Control 380V50HZ
Work Flow
Decoiler------feeding------roll forming---------cut to length-----output table
Machine Component
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Control System | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Decoiler
Max. Width: 500mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 3000 kgs
Type:Hydraulic Or Manual
Roll Forming Machine
Material Thickness: 0.5-1.0mm PPGI and GI
NO.of roller Stations:8groups
Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
Frame panel : guide pillar
Bottom frame: 35# H-section steel
Motor Power: 3kw
Diameter of shaft: 60mm
Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°
Driven type: chain
Speed: 8-12m/min
Cutting Device
|
Material for Cut-Off Modular |
Cr12 steel after treatment |
|
Hardness for Heat Treatment |
HRC58 – 62° |
|
Cut-Off Type |
Mould Cutting |
|
Motor for Hydraulic Stand |
3kw |
Control System
| Type |
PLC Frequency Control System with touch screen |
|
PLC Brand |
Delta |
|
Encoder Brand |
Omron |
|
Length Error |
±2mm |
|
Language |
English and Chinese |
| Voltage |
380v/50HZ, 3Phase (it depends on customer requirement) |
Hydraulic Pump
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. |
| After-Sales-Service |
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
