50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine

50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine
50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine 50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine 50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine 50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine

Large Image :  50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD+8000+SET
Packaging Details: Standard
Delivery Time: 60 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month

50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine

Description
Name: 50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine Color: As Your Require
Bottom Frame: 350H Steel Voltage: 380V/50HZ/3PHASE
Warranty: 2 Year Main Power: 7.5kw
High Light:

cold roll forming machine

,

profile roll forming machine

50HZ / 3 Phase Automatic PU Foam Roller Shutter Door Roll Forming Machine



Machine Component

Decoiler 1set
Roll Forming Machine 1set
Foam Device 1set
Cutting Device 1set
Control System 1set
Hydraulic Pump 1set
Output Table 1set



Work Flow

Decoiler-------roll forming--------foaming-------roll forming ------cut to length-----output table



Decoiler

Max. Width

300mm

Inner Diameter

350-450mm

Max. Loading Capacity

1500kg

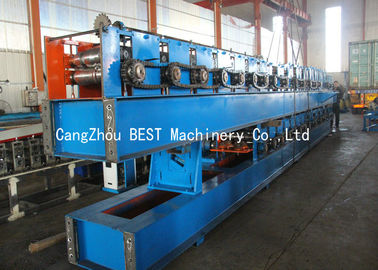

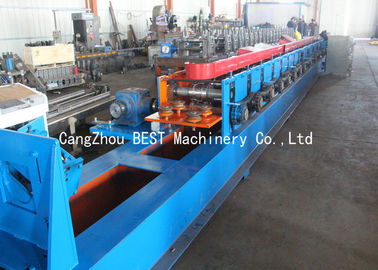

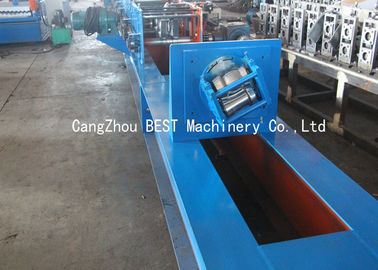

Roll Forming Machine

Material Thickness: 0.25mm
Rollers: 35 Groups
Material for Rollers: 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness: 14mm

Bottom frame: 35# H-section steel
Motor Power: 7.5 kw

Driven type: 1.0"Chain
Machine size: L*W=25m*0.85m

Diameter of shaft: 55mm

Material for shaft: high grade No.45 steel after treatment



Foam Device

Power:3kw

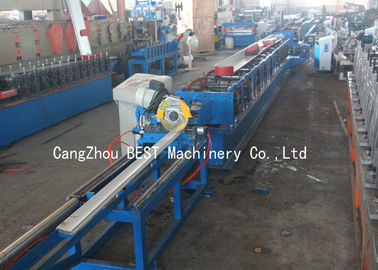

Cutting Device

Type

Flying Saw

Material for Cut-Off Modular

Cr 12 steel

Hardness for Heat Treatment

HRC55 – 60°

Motor for Hydraulic Stand

3kw



Control System

Type;PLC Frequency Control System with touch screen

PLC Brand:Delta

Encoder Brand: Omron

Length Error: ±2mm

Voltage:380v 50hz 3phases



Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand



Output Table

No power type
Length: 2m



Packing Detall

1

1*40 GP container ; main machine naked and fastened with iron wire in the container.

2

Rollers were painted with oil and packed with plastic film.

3

Electrics devices be packed with wooden box.for Standard export packing.

4

All Components Fixed by steel wire with Container.



Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-Sales-Service

Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Other Product

roof sheet machine, double layer machine, roof tile machine, ridge cap machine, water tube machine, highway guardrail machine, cable tray machine, water gutter machine, c z purlin machine, decking sheet machine, sandwich panel machine, roller door machine, ceiling drywall machine, door frame and so on.



Our Machine Advantage

1. Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within 18 month since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.
