Product Details:
|
| Name: | Bamboo Type Colored Glazed Roofing Tile Roll Forming Making Machine | Usage: | Buidling |
|---|---|---|---|
| Warranty: | 2years | Voltage: | 380v |
| Speed: | 5-6m/min | Place Of Origin: | Hebei,China |
| Weight: | 8t | Way Of Drive: | 1.0 Inch Single Chain |
| Power: | 7.5kw | Control System: | PLC Control |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||
Bamboo Type Colored Glazed Roofing Tile Roll Forming Making Machine
1.Main Technical Specification
A. General
| Suitable Material | PPGI, GI, HRB60 or equivalent |
| Material Thickness | 0.2-0.6 mm |
| Length of the Sheet | You can set the length according to your need. |
| Cutting | Automatically stop and cutting when it comes to the set |
B. Components Details
| Roller Material | High grade 45# forged steel. Hard chrome plating, 0.05mm. |
| Main Frame | 300H steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability |
| Forming Steps | 11-16, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
Cutting | Cr12, hardness HRC60-62. |
2. Machine details:
1)DECOILER
(1) Max. Width: 1500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2)ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 12roller stations
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°
(5) Diameter of shaft: 70mm
3)PRESSING AND CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58-62°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 4kw
(5) Press tool material: Cr 12 steel after heat-treated
4)Output table:
(1)No power
(2)Length:2m
3. Working flow:
4. Component:
COMPONENT FOR Roof Sheet Glazed Tiles Roll Forming Machine | |||
Name | Quantity | Units | |
Decoiler | 1 | Set | |
Main Machine | Feeding device | 1 | Set |
Roll forming system | 1 | Set | |
Cut Equipment | 1 | Set | |
Hydraulic system | 1 | Set | |
Electric control system | 1 | Set | |
Supporter/Automatic Stacker | 1 | Set | |

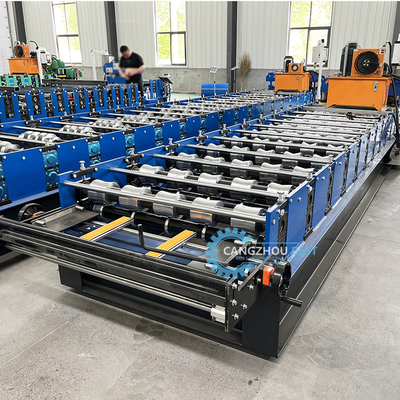

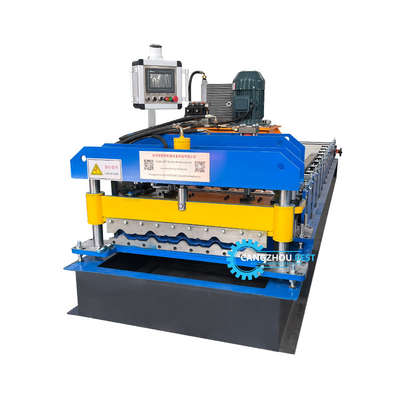

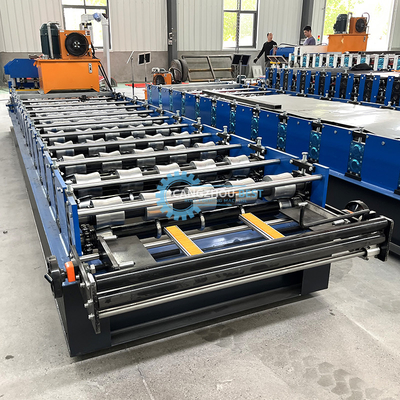

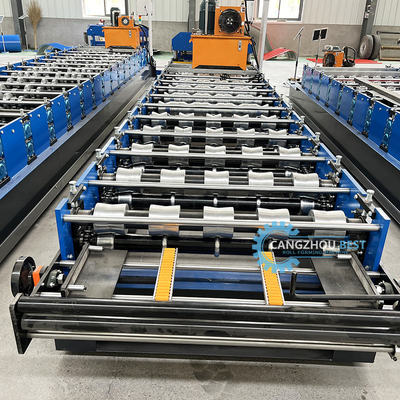

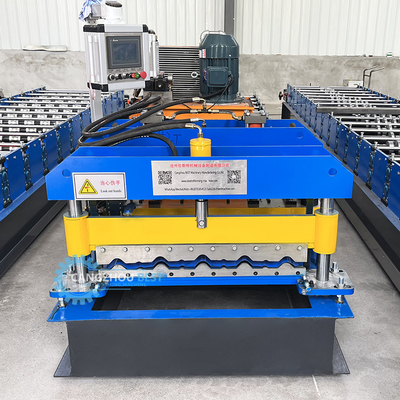

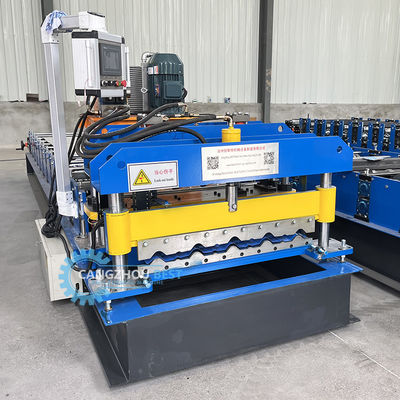

5.Machine photos:
Application:
6. Our customer:
