Product Details:
|
| Product Name: | Automatic IBR Roofing Sheet Roll Forming Machine 5.5kw Main Power | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| High Light: | metal roofing equipment,metal sheet roof roll forming machine |
||
Working flow:
Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack
Main Specifications:
|
Thickness of coil sheet |
0.3-0.8MM,GI/PPGI |
|
Under frame |
400H-beam |
|
Diameter of Soild shaft |
80mm, high grade 45# steel,with keyway |
|
Roller |
High grade Gcr15, processed by CNC lathe, hard chromed 0.05-0.07mm |
|
Thickness of middle plate |
20mm |
|
Forming stations |
18 |
|
Drive type |
By chain(1.2 inch) link bearing model 6210 |
|
Power of main motor |
11kw with Cycloidal reducer, Lichao, Shanghai |
|
Power of pump station |
5.5kw, Lichao, Shanghai |
|
Forming speed |
About 15-20m/min |
|
Blanking cutting (3 pieces of blade) |
Controlled by PLC |
|
PLC |
DELTA, TAIWAN / Mitsubishi, Japan |
|
Material of cutting blade |
Cr12Mov, quenching 58-62℃ |
|
Punching Device |
2 sets |
|
Machine Component |
|||
|
Name |
Quantity |
Units |
|
|
Decoiler |
1 |
Set |
|
|
Main Machine |
Feeding device |
1 |
Set |
|
Roll forming system |
1 |
Set |
|
|
Cut Equipment |
1 |
Set |
|
|
Hydraulic system |
1 |
Set |
|
|
Electric control system |
1 |
Set |
|
|
Supporter/Automatic Stacker |
1 |
Set |
|
| Working conditions | |
| 1.working size | 25m x 2m x 4m |
| 2.Power supply | 8.5kw |
| 3.Frequency | 50-60HZ |
| 4.Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7.Lift device | 3-5t forklift or crane |
Our Service:
- Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
- Reply within 24 hours
- Provide relevant product information
- Answer questions if request
- Give technical suggestion
Provide After-sales service 24hr × 7days per week
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
Why choose us?
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

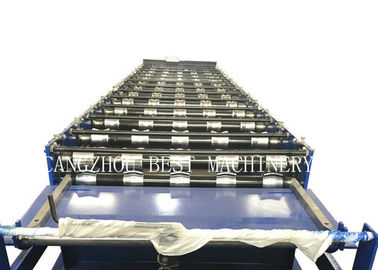

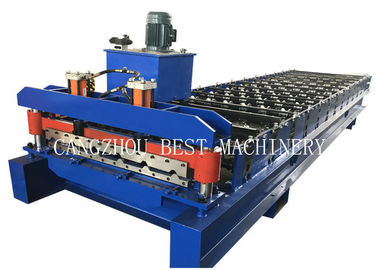

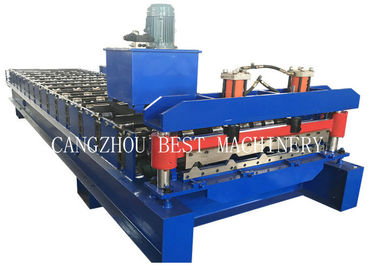

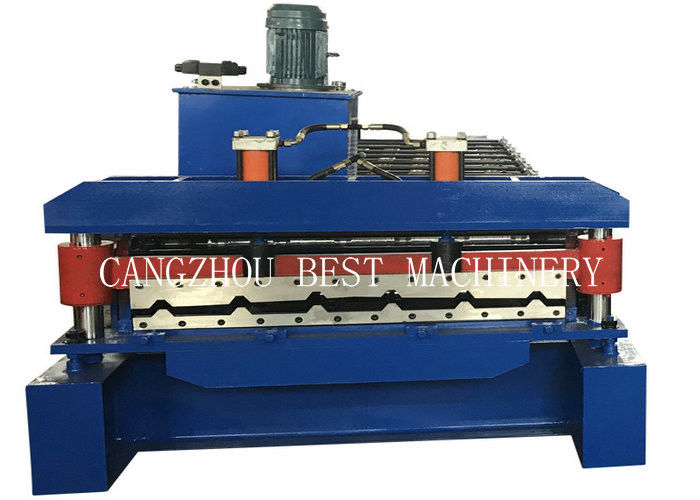

Machine Photo
