Product Details:
|
Product Name: | Peru Pouplar Design Double Layer Roofing Sheet Cold Roll Forming Machine | Color: | Blue Or As Your Request |
---|---|---|---|
Machine Speed: | 8-12m/min | Driven System: | Chain Or Gear Box |
Control System: | PLC | Cutting Type: | Hydraulic |
High Light: | metal roofing equipment,metal sheet roof roll forming machine |

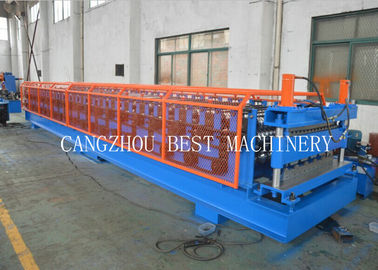

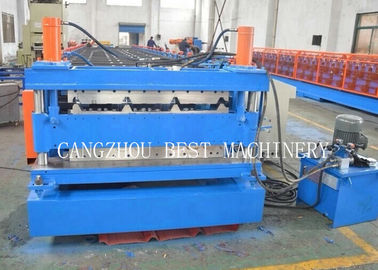

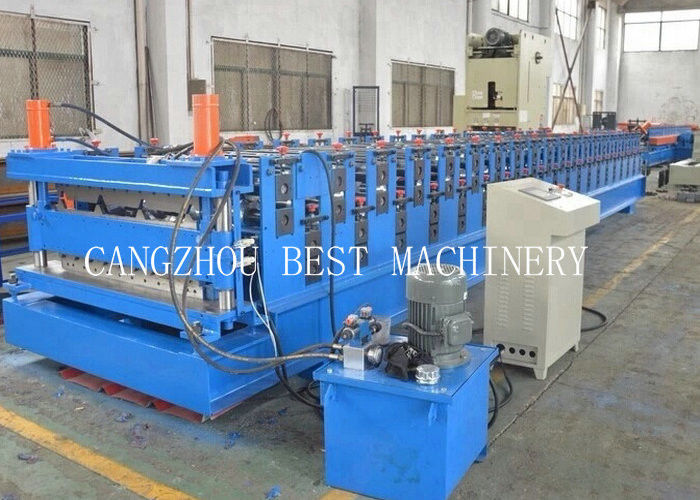

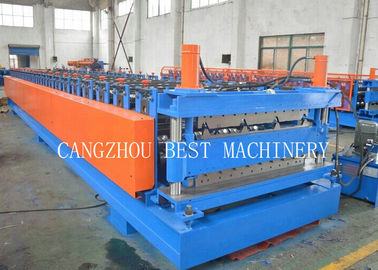

Peru Pouplar Design Double Layer Roofing Sheet Cold Roll Forming Machine
㈠. Profile drawing:
As customer request
㈡. Working flow:
Decoiler---------feeding--------roll forming--------cut to length-----output table
㈢. Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device-----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Output table---------------------------------------1set
Technical Parameter
Part details |
Item Name |
Specification |
Manual uncoiler |
carrying capacity |
5-8 tons |
Stype |
Manual |
|
Raw coil |
Coil material |
steel |
Coil thickness |
0.3-0.8 mm |
|
Machine body |
Roller station |
15 station |
Roller material |
45# steel |
|
Shaft material |
45# steel |
|
Shaft diameter |
75 mm |
|
Machine weight |
About 6.5 tons |
|
Machine size |
5-7.5*1.3*1.3 m |
|
Speed |
8-12 m/min |
|
Cutter |
Operate |
Hydraulic cutting |
Blade material |
Cr12 |
|
Power |
Operate |
Chain transmission |
Chain size |
1 inch chain |
|
Control system |
PLC brand |
Taiwan delta |
Motor power |
7.5 kw |
|
Hydraulic pump power |
3 kw |
|
Voltage |
380V 50Hz 3phase |
|
Machine color |
As ur need |
|
Machine language |
Chinese and English |
Payment type: 30% T/T prepaid and70% balance should be paid before loading
Delivery time: 30 days after receiving advance payment.
Guarantee period: 12months free service/ pay service all the machine life
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Packaging :
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
3. PLC contral system and motor pump are packed in wooden box with water proof paper coverage
Installation and training:
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
