Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power

Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power
Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power

Large Image :  Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power

Description
Product Name: 2mm Thickness Car Board Roll Forming Machine Customzied Color: Blue Or As Your Request
Control System: PLC Driven System: Chain Or Gear Box
Power: 30kw Hydraulic Power: 7.5kw
High Light:

metal roll forming machine

,

cold roll forming machine


2mm Thickness Car Board Roll Forming Machine Customzied

Company Profile

Cangzhou BEST Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of all kinds of roll forming machine. We are located in Cangzhou, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Profile Drawing as our customer profile


Machine Component List:

1) de-coiler  --------------------------------------------------- 1 set
2) Feeding and leveling system -------------------------- 1 set
3) Pre-punching system-------------------------------------- 1 set
4) Roll Forming system----------------------------------------1set

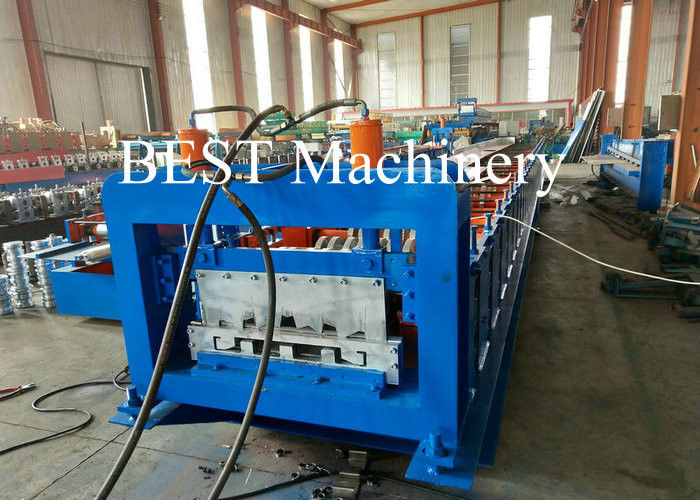

5) Post cutting system------------------------------------------1 set
6) Output table--------------------------------------------------1 set
7) PLC Control System---------------------------------------- 1 set
8) Hydraulic Station---------------------------------------------1set

Processes flow:

Decoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table

Machine Detail Information

Manual Un-coiler

Coil ID: φ 550 ~ 780mm;
Width of the coil: 150 mm - 580mm;
Max Load: 5 T;
Qty: 1PC;

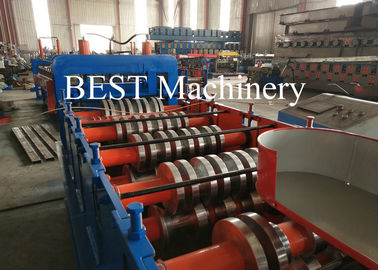

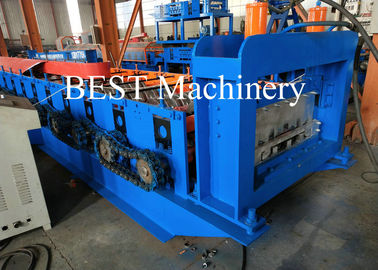

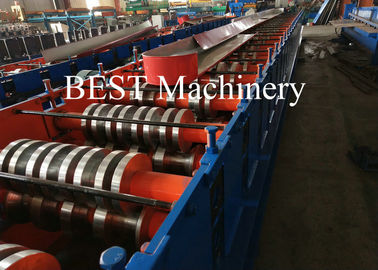

Main roll forming machine

Frame: 400 H steel with welded feeding platform;
Roller stations: 15 stations;
Roller material: Cr12;
Diameter of main shaft: ø95mm;
Material of main shaft: #45 steel, quenching and tempering treatment;
230 type gear box driving;
Main machine power: 2*11KW;
Speed: 8m/min (including punching and cutting);



Control system

Automatic Length measurement and quantity counting (precision 3m+/- 2mm);
Voltage: 380V, 3 Phase 50Hz (or as per buyer`s request);
PLC brand: DELTA from Taiwan;
Frequency converter brand: DELTA from Taiwan;
Touch Screen brand: DELTA from Taiwan;
Encoder : REP from China.



Working conditions
1.working size 25m x 2m x 4m
2.Power supply 8.5kw
3.Frequency 50-60HZ
4.Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7.Lift device 3-5t forklift or crane


Service

Provide Pre-sales Consultant & On-purchase service 24 hr × 6 days per week

1. Reply within 24 hours

2. Provide relevant product information

3. Answer questions if request

4. Give technical suggestion


Provide After-sales service 24hr × 7days per week

1. Test the machine before shipment

2. Provide technical guidance relate to use the machine

3. Supply one-year warranty period for the machine

4. Provide the spare parts at cost price after warranty period

5. Collect the feedback for the machine working

Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power 0

Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power 1

Metal Steel 2mm Thickness Car Board Panel Roll Forming Machine 30kw Power 2
