Product Details:
|
| Product Name: | 1 Year Warranty Shallow Rain Gutter Roll Forming Machine Used For India Market | Warranty: | 2 Years |
|---|---|---|---|
| Life Time: | More Than 10 Years | Material: | PPGI/ GI |
| Botttom Frame: | 360H Steel | Cutting Type: | Hydraulic |
| High Light: | plc gutter equipment,profile roll forming machine,gi gutter roll forming |
||

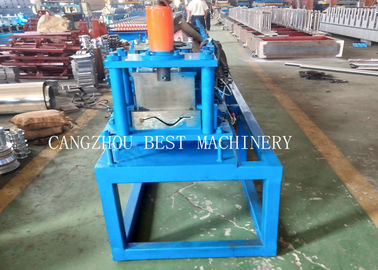

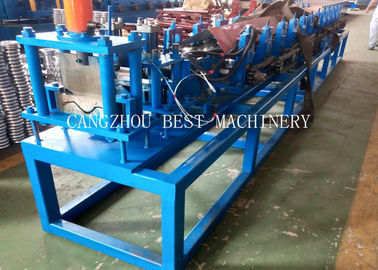

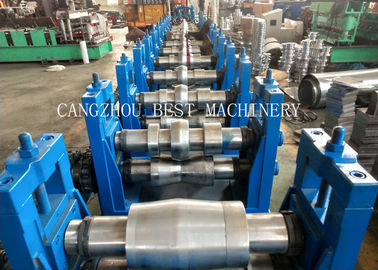

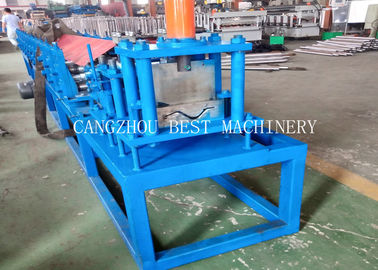

1 Year Warranty Shallow Rain Gutter Roll Forming Machine Used For India Market
1. The Chart of Process flow
Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables
2.Main Parameters:
| Item | Parameters | |
| According to buyer's requirements | ||
| Raw material | Type | PPGI, PI, CR , Steel Coil, or equivalent |
| Thickness(mm) | 0.3-0.8 | |
| Width of the feeding material | According to buyer's final confirmed profile drawing | |
| Yield strength(Mpa) | 230-550 | |
| Forming speed(m/min) | 0-18 | |
| Roller material | 45 # sheet with chrome coated | |

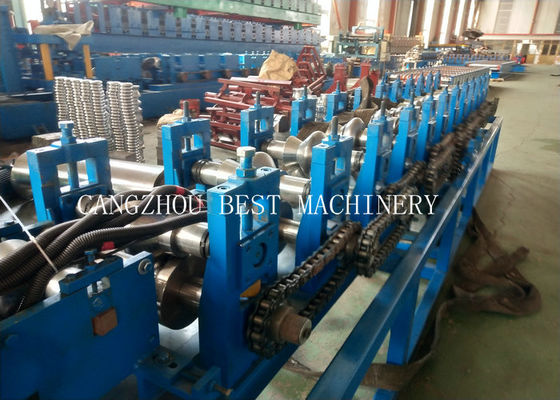

| Roller driven type | Chain transmission | |
| Control System | PLC (Panasonic) as list in the note | |
| Operation type | Touch screen + button | |
| Hydraulic system pressure( MPa ) | 12 | |
| Hydraulic motor power ( KW ) | 5.5 | |
| Main motor power(KW) | 2 * 5.5 | |
| Shaft Material and DIA | 65mm, material is 45 # forge steel | |
| Electric Source | 380V, 50HZ,3 phase According to customer’s require |
|
| Roller stations | 16 | |
| Dimension(L*W*H) | Forming Section about 7m*1.8m*1.2m | |
3.Machine component:
| Manual decoiler ( 3 Ton ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 2 unit |
4.Details:
PLC control system
Usage: control the beginning and the ending of the main part, also can control the number, length, and the speed of the products.
Adopted PLC , frequency converter , Delta touch screen are from Taiwan to ensure the high speed with the stability, precision and the lifetime.
Other electric element are Panasonic.
The receiving table
Usage: to receive the finished product, and transmit it to the destination.
Varieties of receiving tables, general, better, best,you can choose. Generally the one is 3 meters, and totally we will offer two for customers. We also can offer according to the requests from customers.
Decoiler system
Usage: It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity: 3T
Uncoiling width: 500mm
Inner diameter: 450-550mm
Hydrulic station
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power: 5.5kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes and two sets of electromagnetism valves.
